MX STRADA IVA
Technical Information

Model

MXT Strada

AIM MXT
MXT Strada

MXG Strada

AIM MXG
MXG Strada

MXP Strada

AIM MXP
MXP Strada

MXS Strada

AIM MXS
MXS Strada

Overview

The MX Strada IVA compliant digital dash display is a complete road legal display solution for OEM kit car and race builders.

Key Features

  • 10” TFT display
  • CAN output
  • GPS Module
  • 10 shift light RGB LEDs
  • 6 alarm RGB LEDs
  • 8 analogue inputs
  • 7" TFT display
  • 10 shift light RGB LEDs
  • CAN output
  • 8 alarm RGB LEDs
  • 8 analogue inputs
  • Configure data
  • 6" TFT display
  • 10 shift light RGB LEDs
  • CAN output
  • 5 alarm RGB LEDs
  • 8 analogue inputs
  • Configure data
  • 5" compact TFT display
  • 10 shift light RGB LEDs
  • CAN output
  • 6 alarm RGB LEDs
  • 8 analogue inputs
  • Configure data

Size & Weight

  • Dimensions:
    278 X 135 X 43.2mm
  • Weight: 1,100g
  • Dimensions:
    237 x 127.6 x 26mm
  • Weight: 950g
  • Dimensions:
    189.6 x 106.4 x 24.9 mm
  • Weight: 590g
  • Dimensions:
    169.4*97*23 mm
  • Weight: 480g

Waterproof

  • IP67
  • IP65
  • IP65
  • IP65

In the box

  • MXT Dash Logger
  • 14 Pin standard wiring
  • IVA Loom
  • USB Cable
  • Aim sticker
  • MXG Dash Logger
  • 14 Pin standard wiring
  • IVA Loom
  • USB Cable
  • Aim sticker
  • MXP Dash Logger
  • 14 Pin standard wiring
  • IVA Loom
  • USB Cable
  • Aim sticker
  • MXS Dash Logger
  • 14 Pin standard wiring
  • IVA Loom
  • USB Cable
  • Aim sticker

Technical

  • Light Sensor: Yes
  • Alarm Display Icons: Yes, freely configurable
  • Shift Lights: 10 configurable RGB LEDs
  • Alarm LEDs: 6 configurable RGB LEDs
  • CAN connections: 2
  • ECU connections: CAN, RS232 or K-Line
  • External modules: GPS Module, Channel Expansion, TC Hub (necessary to connect K thermocouples),Lambda Controller, SmartyCam HD
  • Analogue inputs: 8 fully configurable, max 500 Hz each
  • Digital inputs: 1 Speed input, coil RPM input
  • Digital outputs: 1 (1 Amp max)
  • Second CAN: Yes
  • Body: Anodised Aluminium
  • Pushbuttons: Metallic
  • Connectors: 2 AMP connectors + 1 binder connector
  • Power consumption: 450 mA
  • Light Sensor: Yes
  • Alarm Display Icons: Yes, freely configurable
  • Shift Lights: 10 configurable RGB LEDs
  • Alarm LEDs: 8 configurable RGB LEDs
  • CAN connections: 2
  • ECU connections: CAN, RS232 or K-Line
  • External modules: GPS Module, Channel Expansion, TC Hub (necessary to connect K thermocouples),Lambda Controller, SmartyCam HD
  • Analogue inputs: 8 fully configurable, max 500 Hz each
  • Digital inputs: 1 Speed input, coil RPM input
  • Digital outputs: 1 (1 Amp max)
  • Second CAN: Yes
  • Body: Anodised Aluminium
  • Pushbuttons: Metallic
  • Connectors: 2 AMP connectors + 1 binder connector
  • Power consumption: 400 mA
  • Light Sensor: Yes
  • Alarm Display Icons: Yes, freely configurable
  • Shift Lights: 10 configurable RGB LEDs
  • Alarm LEDS: 5 configurable RGB LEDs
  • CAN connections: 2
  • ECU connections: CAN, RS232 or K-Line
  • External modules: GPS Module, Channel Expansion, TC Hub (necessary to connect K thermocouples),Lambda Controller, SmartyCam HD
  • Analogue inputs: 8 fully configurable, max 500 Hz each
  • Digital inputs: 1 Speed input, coil RPM input
  • Digital outputs: 1 (1 Amp max)
  • Second CAN: Yes
  • Body: Anodised Aluminium
  • Pushbuttons: Metallic
  • Connectors: 2 AMP connectors + 1 binder connector
  • Power consumption: 400 mA
  • Light Sensor: Yes
  • Alarm Display Icons: Yes, freely configurable
  • Shift Lights: 10 configurable RGB LEDs
  • Alarm LEDs: 6 configurable RGB LEDs
  • CAN connections: 2
  • ECU connections: CAN, RS232 or K-Line
  • External modules: GPS Module, Channel Expansion, TC Hub (necessary to connect K thermocouples),Lambda Controller, SmartyCam HD
  • Analogue inputs: 8 fully configurable, max 500 Hz each
  • Digital inputs: 1 Speed input, coil RPM input
  • Digital outputs: 1 (1 Amp max)
  • Second CAN: Yes
  • Body: Anodised Aluminium
  • Pushbuttons: Metallic
  • Connectors: 2 AMP connectors + 1 binder connector
  • Power consumption: 400 mA

Display

  • Display: 10" TFT
  • Resolution: 1280 x 480 pixels
  • Contrast: 1,100:1
  • Brightness:800cd/m2 - 1,100 Lumen
  • Display: 7" TFT
  • Resolution: 800 x 480 pixels
  • Contrast: 1000:1
  • Brightness: 700cd/m² - 1,100 Lumen
  • Display: 6" TFT
  • Resolution: 800 x 480 pixels
  • Contrast: 600:1
  • Brightness: 700cd/m² - 1,100 Lumen
  • Display: 5" TFT
  • Resolution: 800 x 480 pixels
  • Contrast: 600:1
  • Brightness: 700cd/m² - 1,100 Lumen

Diagram

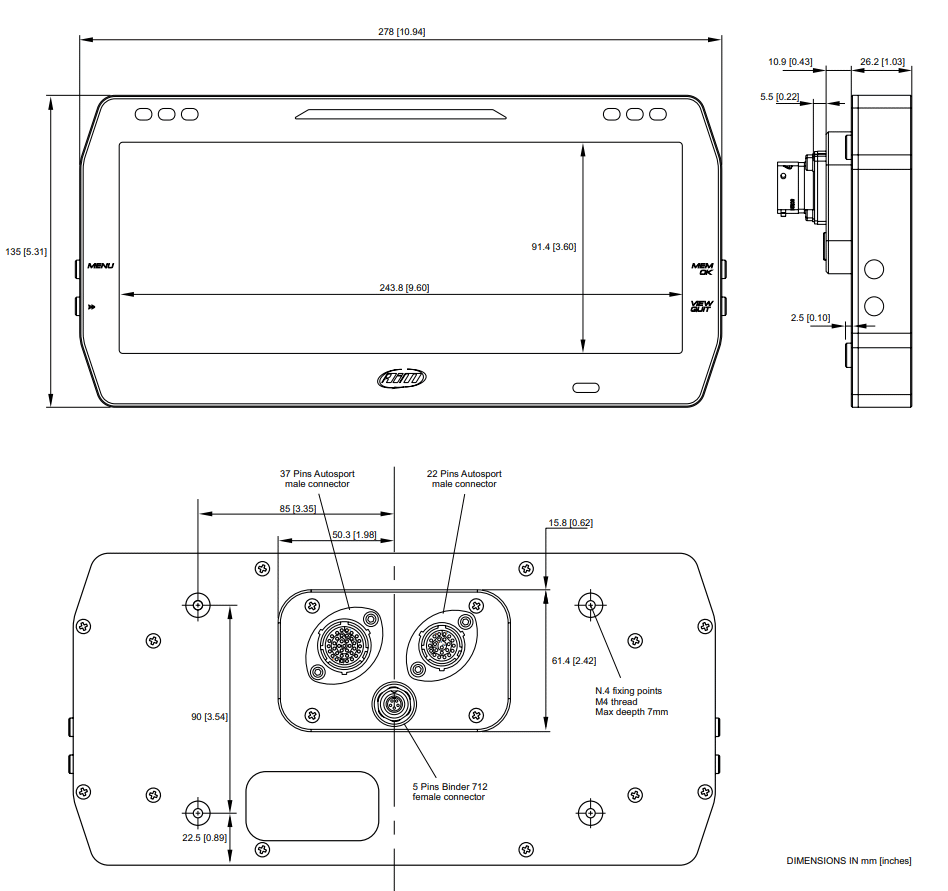

MXT

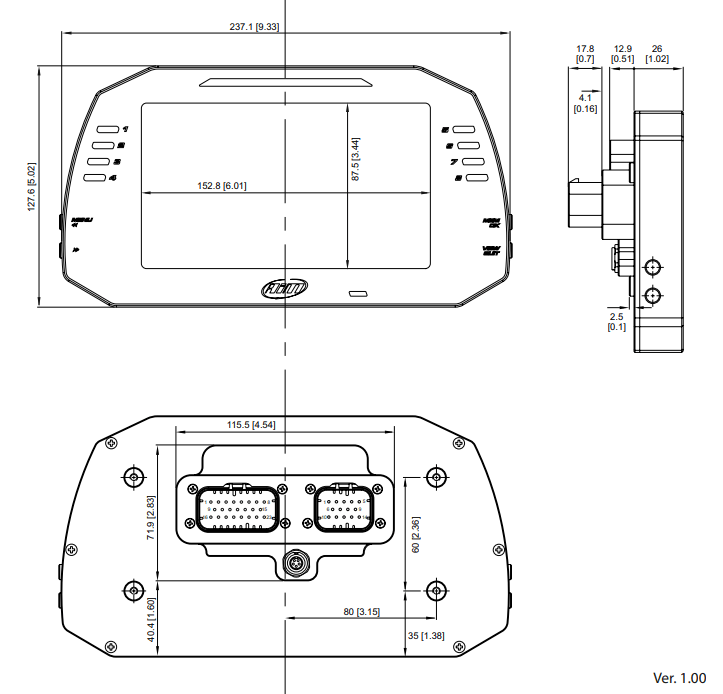

MXG

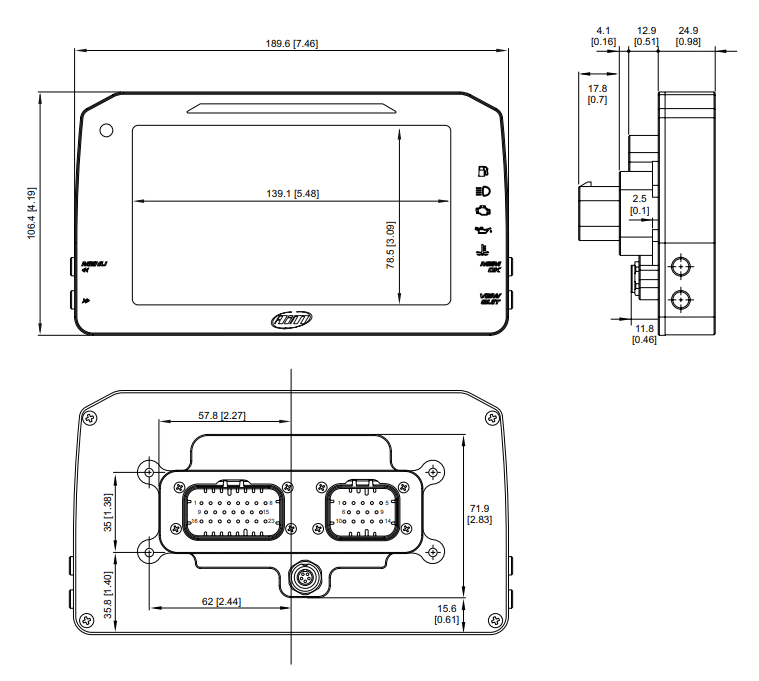

MXP

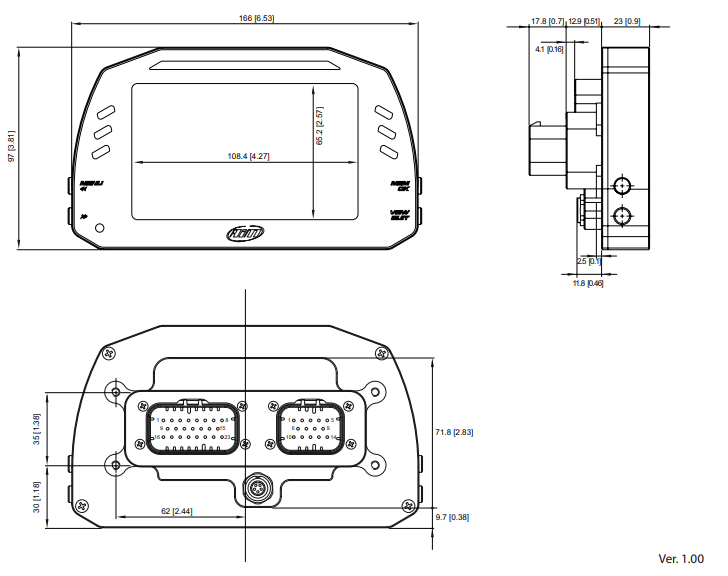

MXS

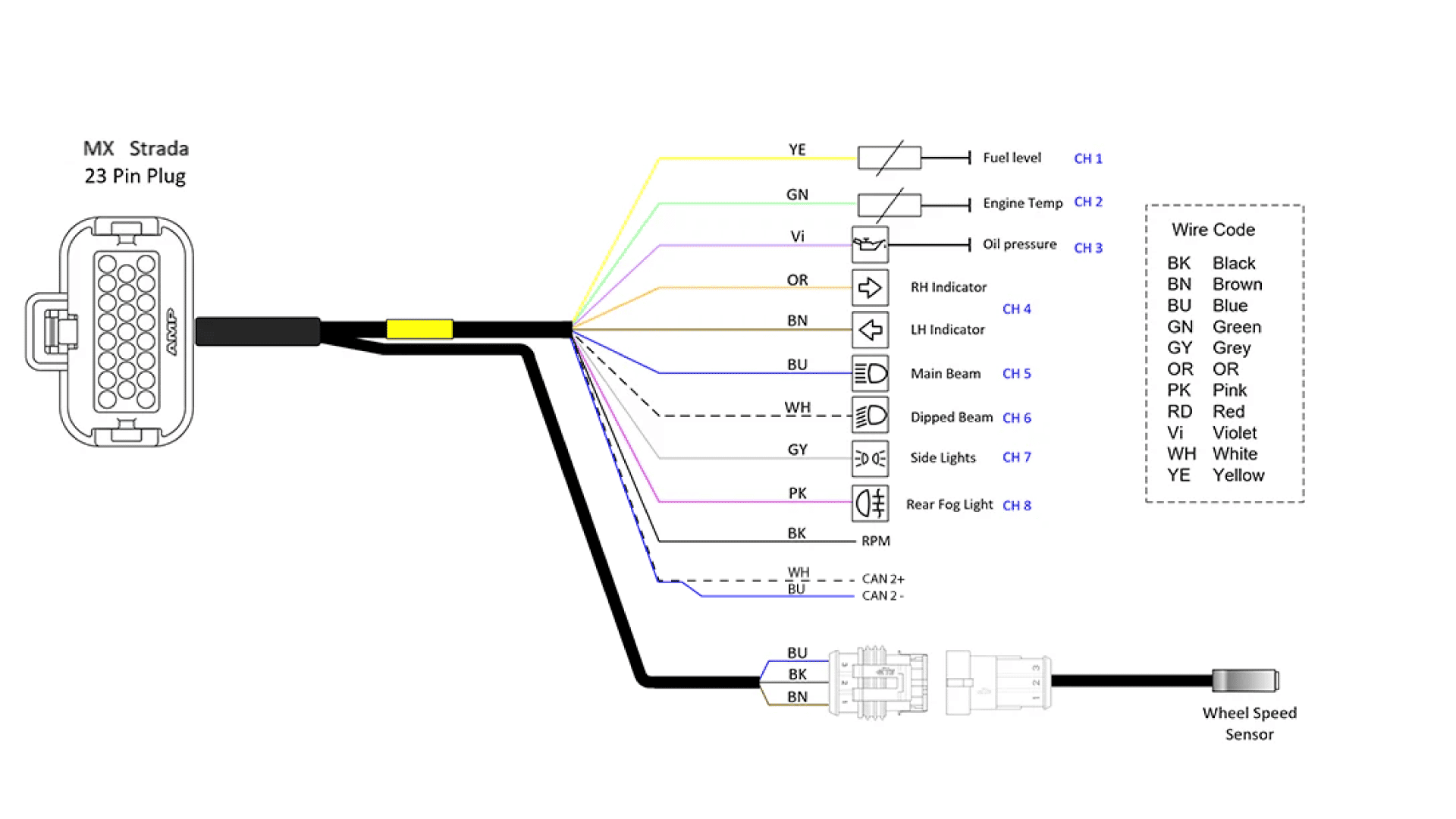

IVA Loom

MXT
