MX Strada Series Dash
Our Complete Range of Dash Displays for Motorsport
View Specs
View Specs
View Specs
View Specs
Unlimited Uses

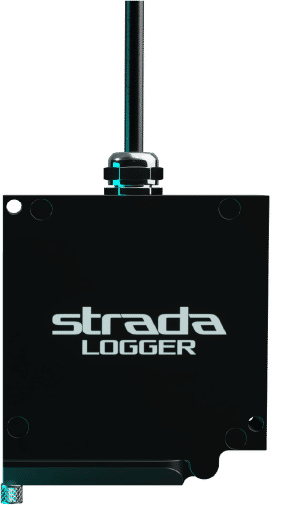

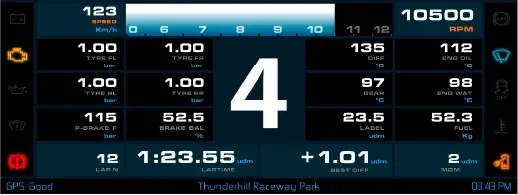

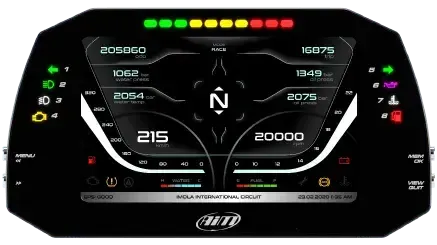

The MX Strada series dash is an HD digital display, designed for motorsport drivers who need essential data visibility while on the track or road. These dashboards are tailored to show real time data such as speed, RPM and temperatures, but they don't include data logging functionalities natively. To expand the data logging capabilities of the MX Strada series dashes, an additional Strada Logger kit is required.
-
Rear Camera
Two analogue camera inputs are available to switch your display into a mirror camera through a pushbutton command or event management
-
ECU Connection
You can configure the dash to show all the information coming from the ECU, analogue /digital inputs, predefined math channels and an optional GPS Module
-
Analogue / Digital Inputs

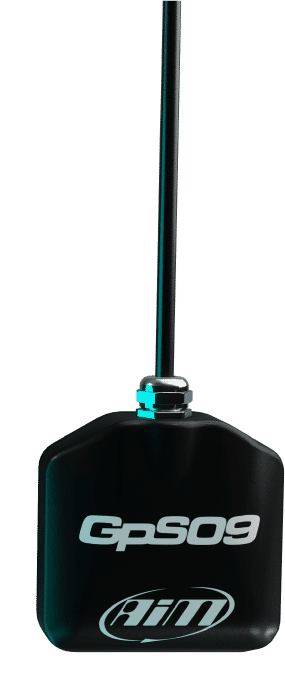

MX Strada series dashes have 8 configurable analogue inputs. External modules, like GPS modules, Lambda Controllers or channel expansions can also be added to enhance data collection
-
LED Alarms
You can choose the conditions and colours, select a solid arm or flashing one, also the flashing frequency. You can also configure an accompanying text message and set the alarm priorities
-
Math Channels
Sampled data depends on the actual ECU, but will typically include RPM, throttle position, (TPS), oil, air, water temperature, oil pressure, battery voltage, speed, gear, lambda value (air/fuel ratio)
-
Second CAN
With CAN Output, you can send messages directly to an existing CAN network to improve the range of vehicle control possibilities, whether it’s a race car, motorbike or powerboat
TFT Display

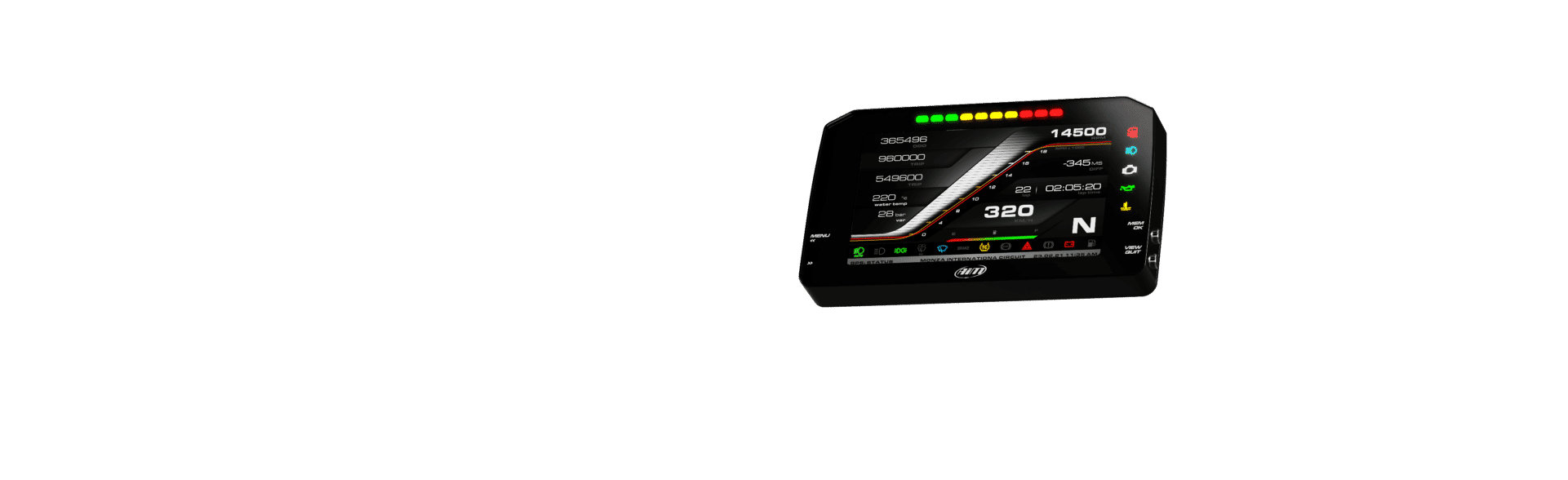

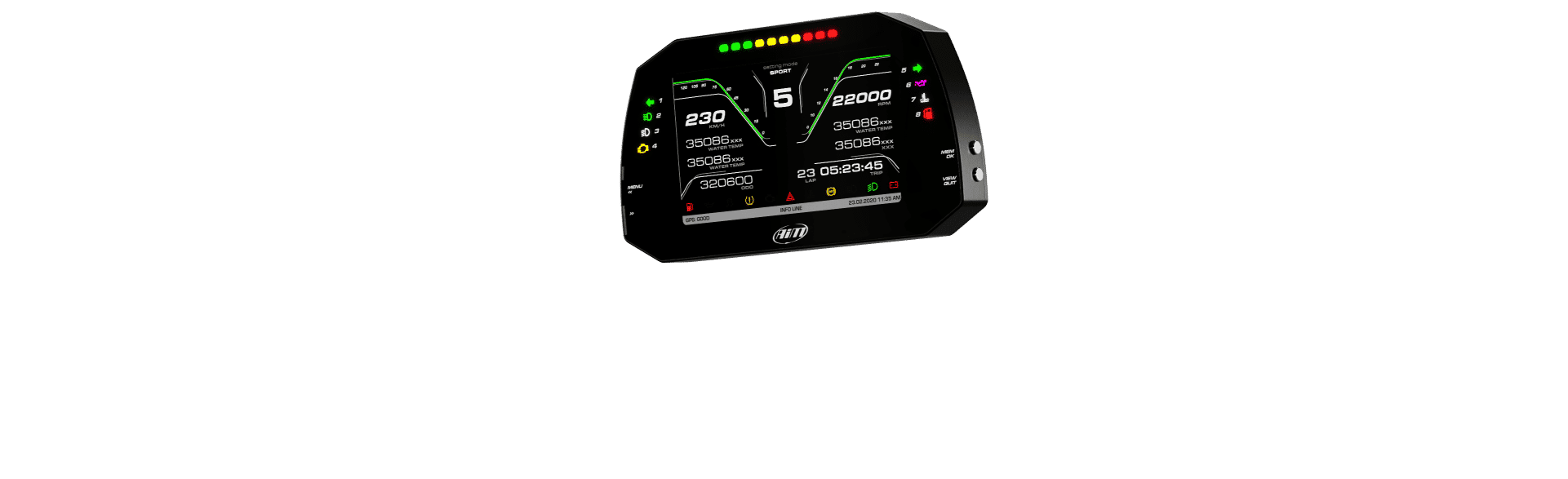

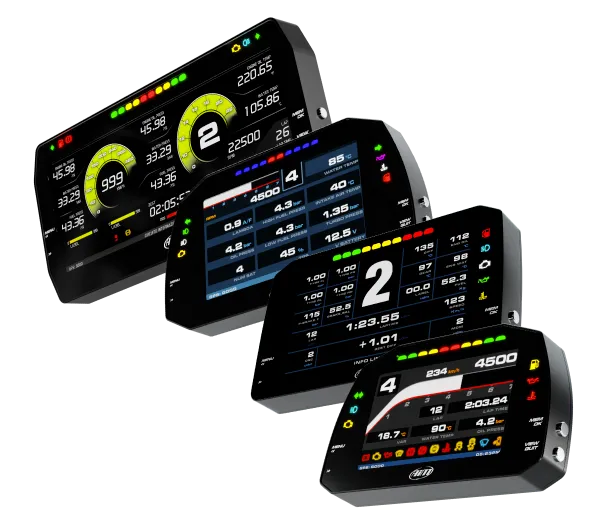

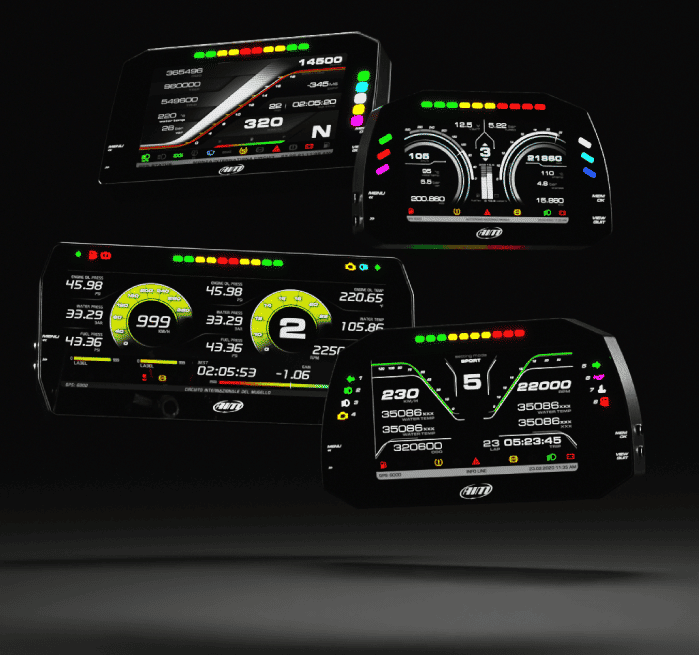

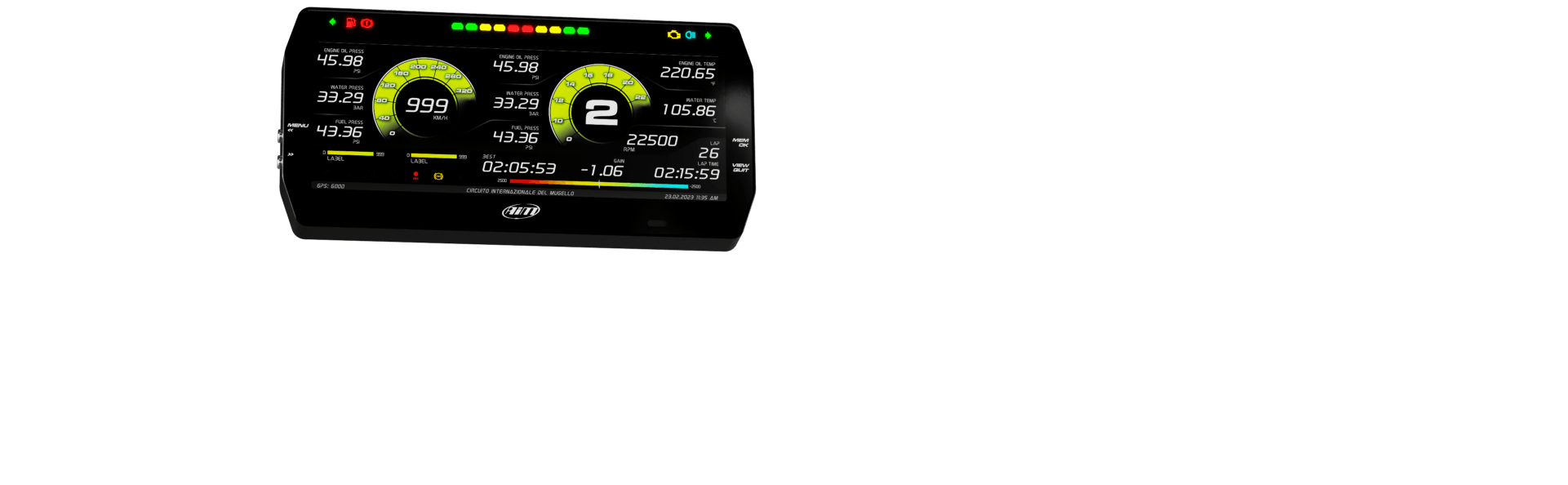

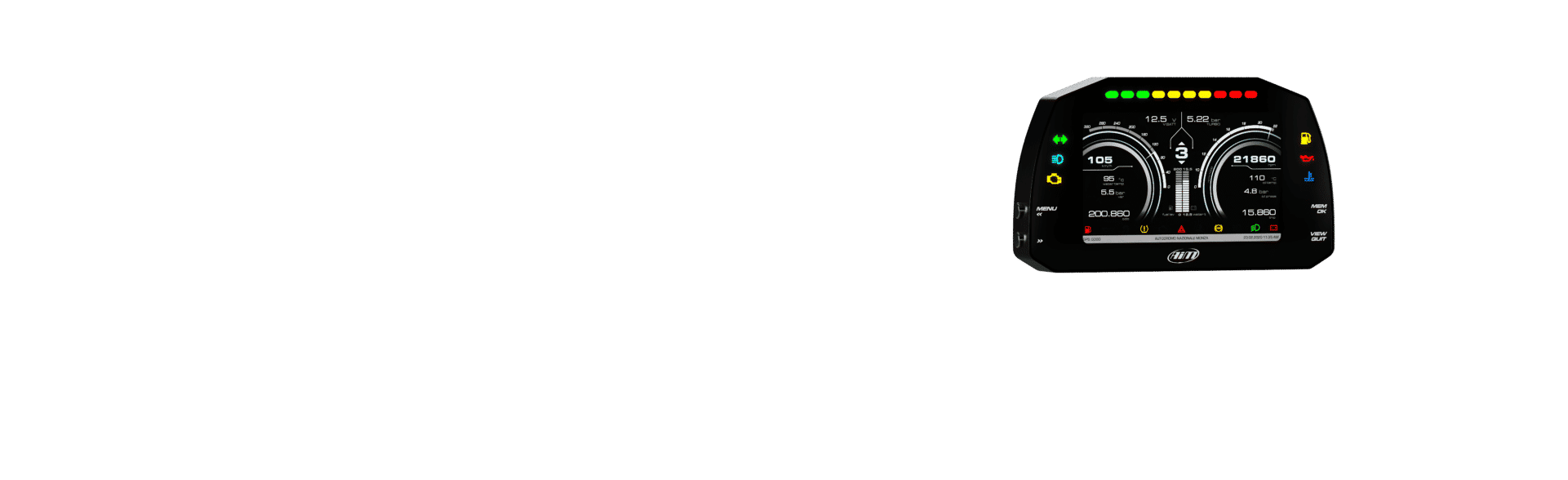

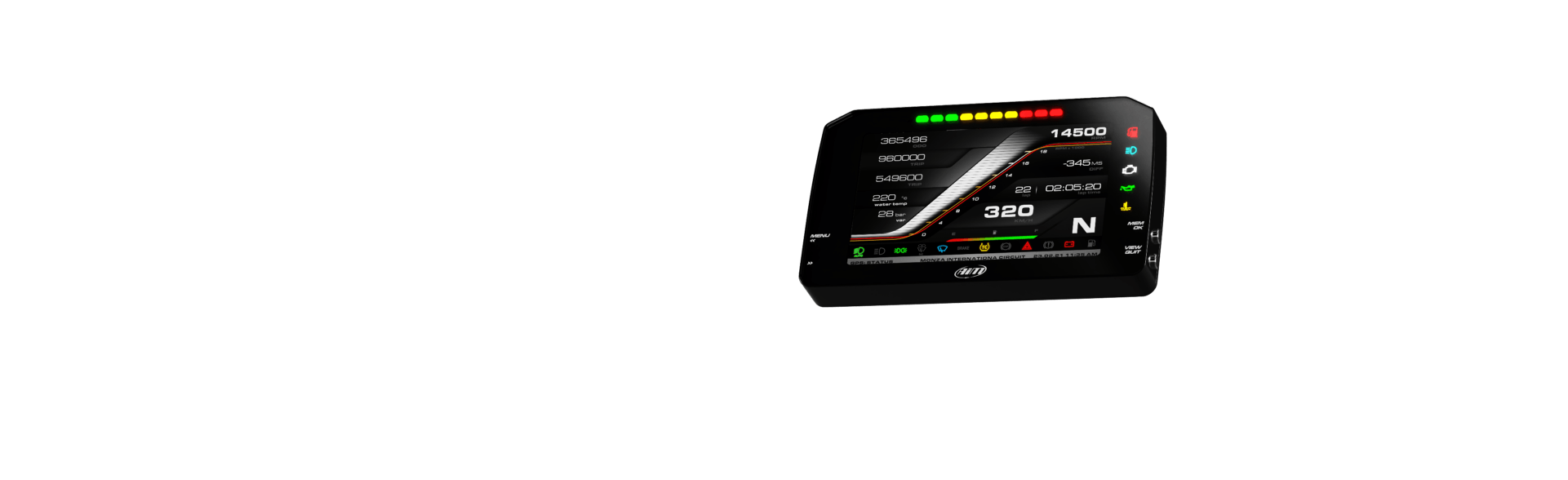

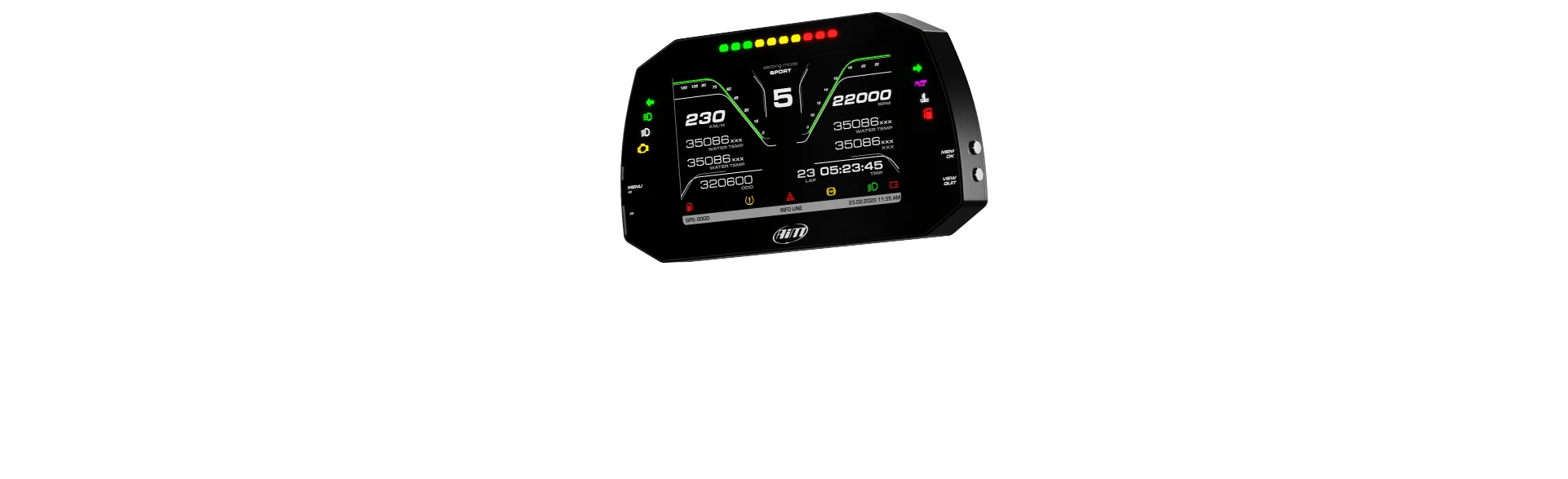

The MX Strada series dash comes in 4 TFT display sizes to suit your preferences: MXS 5" display, MXP 6" display, MXG 7" display and MXT 10" display. All offer great flexibility in information display and alerts, whilst a built-in light sensor adjusts the screen for optimal visibility under varying lighting conditions.
Choose What
Works For You
Flexible Alarms

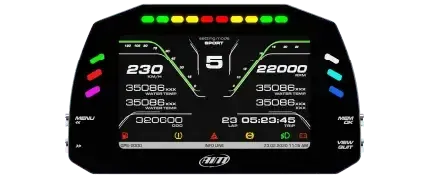

The MX Strada series dash display allows you to customise your RGB LEDs, choosing different colours for each gear, with a variety of alarm flashing options available too. This customisation provides drivers with immediate visual cues that are easy to interpret at high speed.

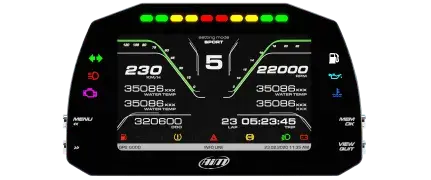

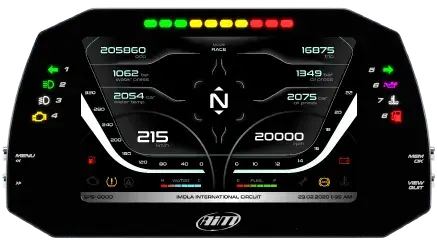

Icons
Unlike the MX loggers, the Strada display series offer both race and road icon customisation.
Integrated Shift Light Array
Tailor your shift light sequences with an array of RGB patterns, even assigning different colours for each gear shift.

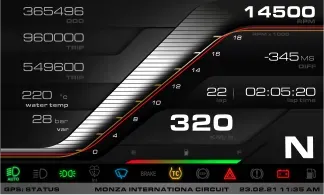

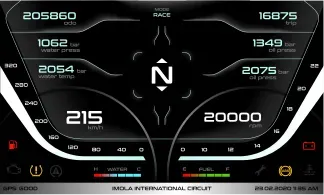

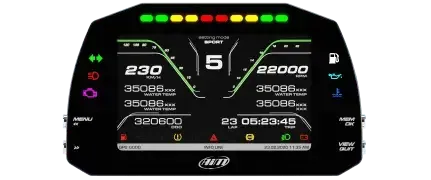

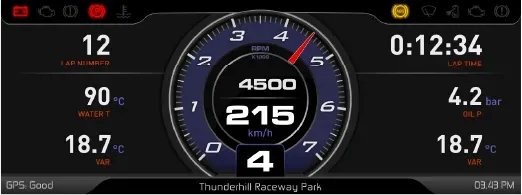

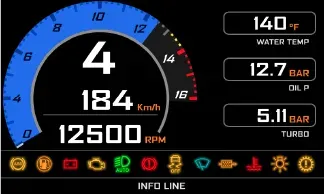

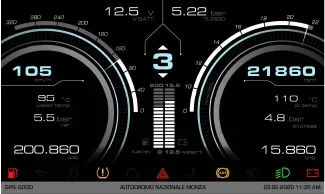

2 Display Styles
Choose between analogue and digital display designs depending on how you like to see your data.

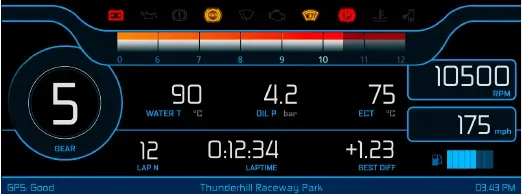

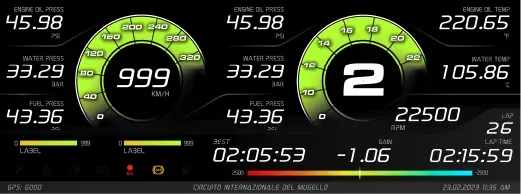

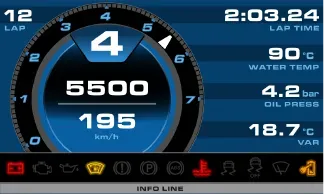

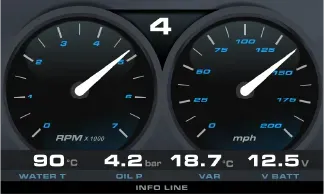

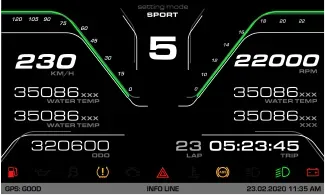

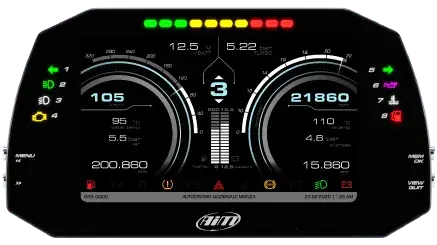

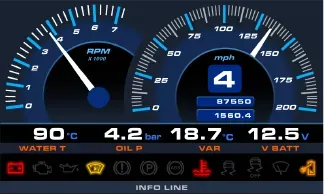

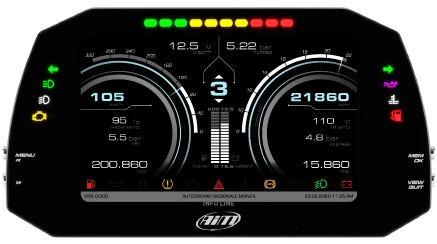

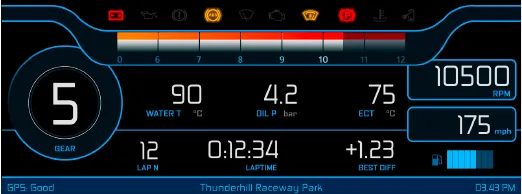

Analogue
v

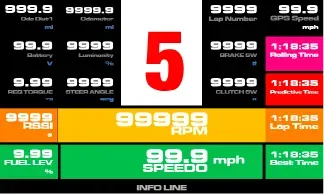

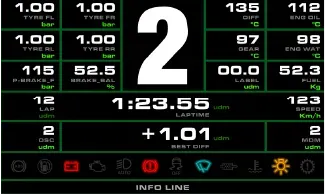

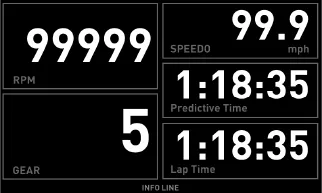

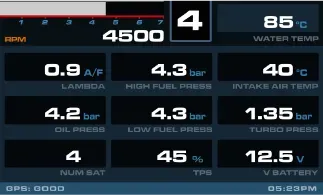

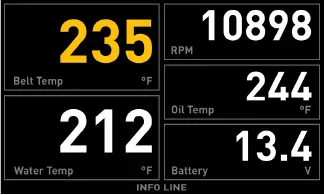

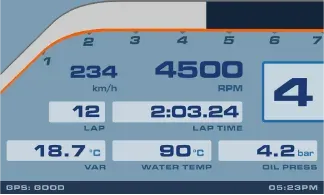

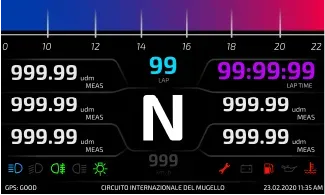

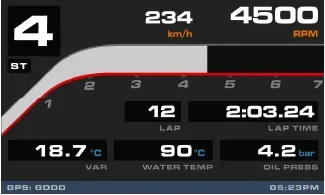

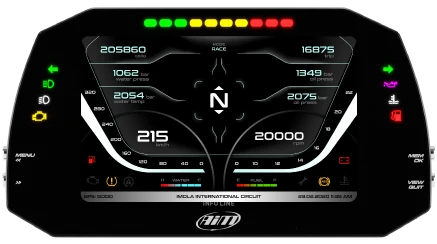

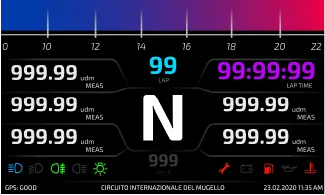

Digital
v
Delta Times
Delta Times provides instant feedback on your performance, showing how your current timing compares to your best.
8 Analogue
Sensor Inputs
8 fully configurable analogue sensor inputs, max 500 Hz each.

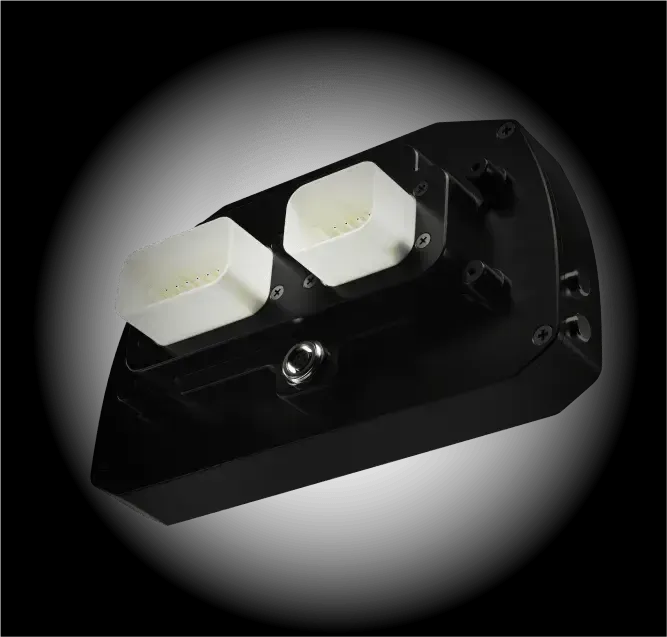

14 Pin Harness:
Comes standard and provides the first CAN Network.
23 Pin Harness:
Purchased separately and provides the eight analogue inputs, one speed input and the extra CAN Network
One Digital Output
The digital output (Dout) is a LOW SIDE type (switch to ground) and can be configured to activate based on various input values for enhanced vehicle control.

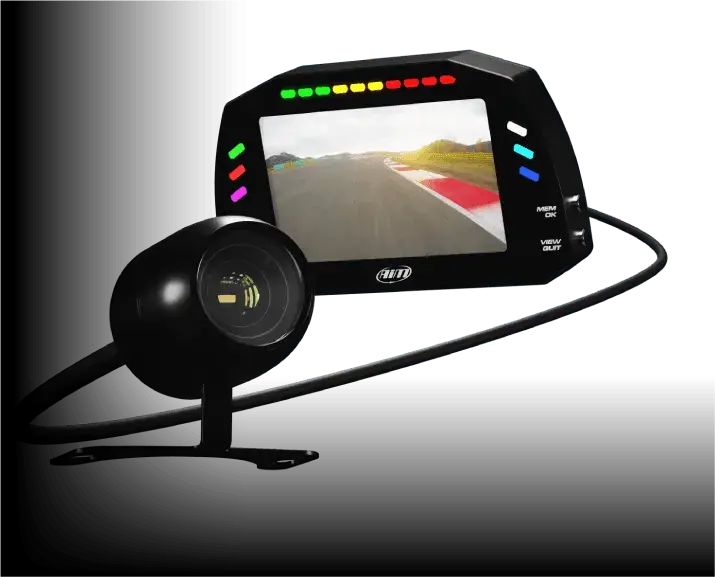

Watch Your Back
Upgrade your visibility with the new dual rear camera management, aiding in driving and parking.
Transfer Data Fast
Simplify wireless data transfer with a secure 802.11 Wi-Fi connection, allowing for remote calibration and configuration up to 50 meters away.
Learn More >

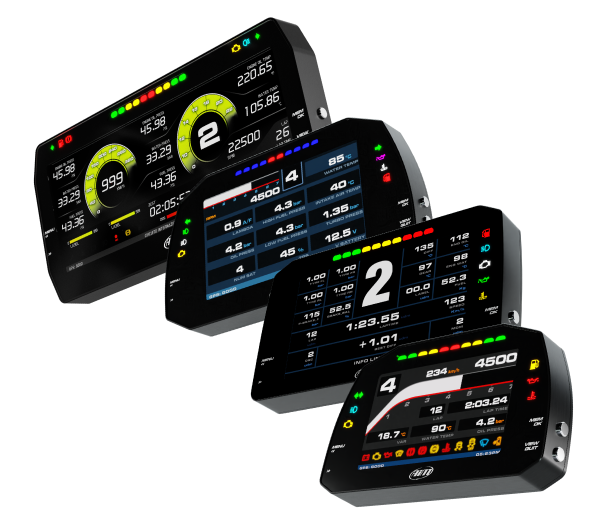

Want To Be Road Legal ?
IVA Compliant 'Plug & Play' Dashes
Designed for OEM and 'Kit Car' builders, these dashes ensure compliance with road legality standards, simplify installation with plug-and-play features, and allow for straightforward connection to the vehicle's ECU.
Now Sampling at 25Hz,
showing Delta times and more...
All you need to know about how your data works.
Learn More
"If you can’t explain it simply, you dont
understand it well enough.”
Albert Einstein
Utilise Race Studio 3 to manage configurations, access a vast track library, and analyse performance with video support.

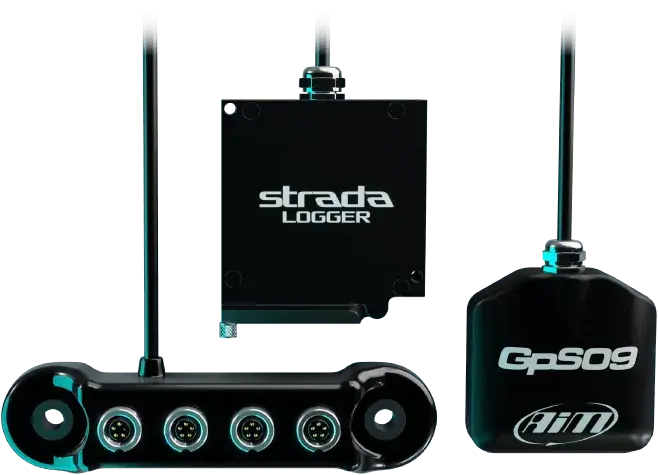

Expand
Your System

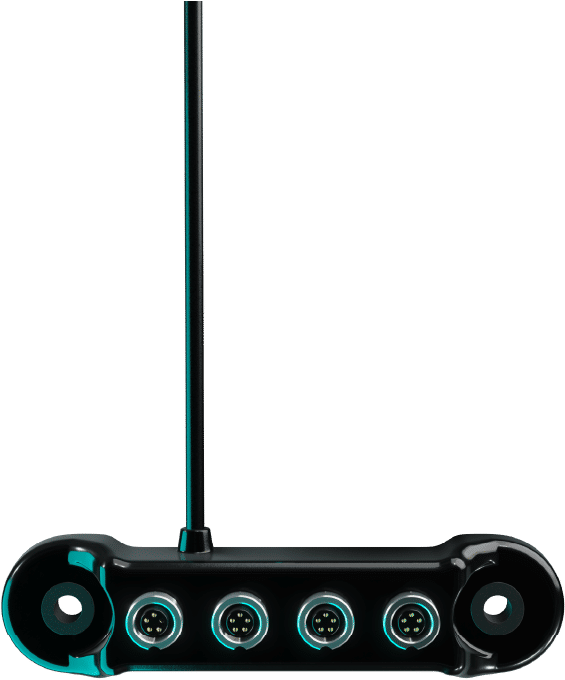

Enhance the functionality, performance and reliability of your Aim MX Strada Series Display with our range of expansions designed to increase the range and depth of data collection and analysis.
