Technical Information

MX2E
Technical Information

Model

mx2e
MX2E

Overview

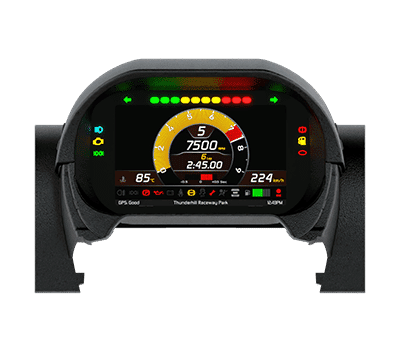

This amazing dash logger can be used for daily driving and customised for track days at the push of a button. High Contrast 6" TFT display. Wi-fi connectivity. Integrated GPS module. CAN bus ECU interface. 16 integrated LEDs. 14 digital switch inputs. Optional Rear Camera Input.

Key Features

  • CAN connection for getting all the data coming from the stock ECU
  • 6 alarm LEDs
  • 10 RGB LEDs to help shifting the gear
  • 2 turn lights indicator
  • 14 digital switch inputs
  • Rear camera input
  • Seatbelt buzzer alarm
  • Wi-Fi connectivity

Size & Weight

  • Dimensions: 191 x 114,2 x 26,4 mm
  • Weight: 640g

Waterproof

  • IP 65

In The Box

  • MX2E Dash Logger
  • Cluster
  • GPS Module
  • Screws & Washers
  • Adaptor Harness (optional if required)

Technical

  • Ambient light sensor: Yes
  • Integrated buttons in cluster: 4
  • Status information LEDs: 6
  • Shift lights LEDs: 10
  • Turn indicators: 2
  • CAN connections: 2
  • ECU connections: Yes
  • External modules: GPS Module, Channel Expansions, Lambda Controller, SmartyCam HD
  • Wi-Fi connection: Yes
  • Rear camera input: Yes
  • Internal memory: 4GB
  • Body: Anodized Aluminium
  • Connectors: 1 Delphi 12040722 connector + 4 Binder 712 connectors
  • Power consumption: 400mA

Display

  • Display: 6" TFT
  • Resolution: 800 x 480 pixels
  • Contrast: 600:1
  • Brightness: 700cd/m2 - 1,100 Lumen

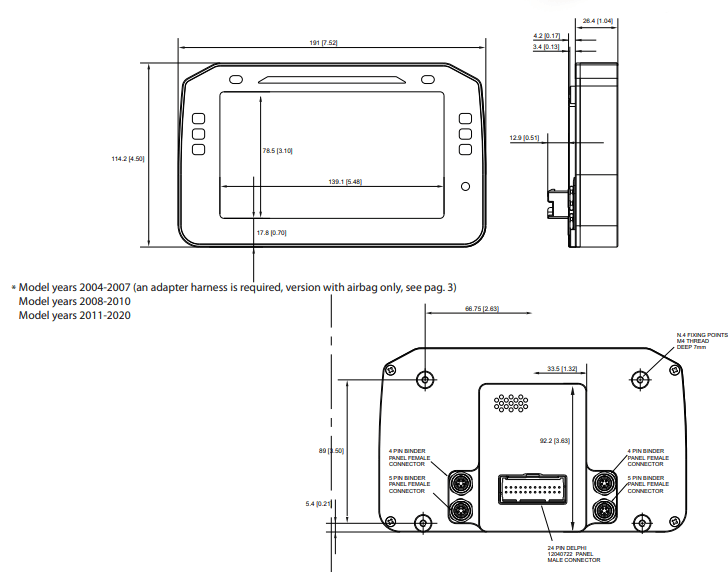

Diagram
