Overview

The Aim Mxm is a compact unit which features advanced data logging capabilities and is designed for racers needing all the essential information to monitor their vehicle for behaviour and to improve performance.

Designed to acquire and display data coming from the ECU, as well as from the internal GPS receiver, analogue/digital inputs and predefined math channels.


Key Features

  • High contrast configurable display
  • CAN & Analogue Data Input
  • 5 configurable RGB LEDs Shift lights
  • Waterproof
  • Integrated GPS
  • 5 configurable RGB colours
  • 2 configurable RGB LEDs alarms
  • Free race studio 3 download

Size & Weight

  • Dimensions: 137 x 88.4 x 31.9 mm
  • Weight: 330g

Waterproof

  • IP 65

In The Box

  • MXm
  • 37 pin standard harness
  • 37 pins connector harness
  • USB Cable
  • DTP 09-45 EE01 4 pins connector with pins
  • Aim sticker

Technical

  • Ambient light sensor: Yes
  • Shift Lights: 5 configurable RGB LEDs
  • Alarm LEDs: 2 configurable RGB LEDs
  • CAN connections: 2
  • ECU connection: CAN, RS232 or K-Line to 1,000+ industry leading ECUs
  • GPS: Integrated
  • External modules: Lambda Controller, SmartyCam HD
  • Analogue inputs: 4 fully configurable, max 500Hz each
  • Digital inputs: 2 speed inputs, coil RPM input
  • Digital outputs: 2 high-side
  • WiFi connection: Yes
  • Internal Memory: 4 GB
  • Body: Glass fibre reinforced Nylon
  • Pushbuttons: Metallic
  • Connectors: 37 pins Motorsport connector + 4 pins power connector

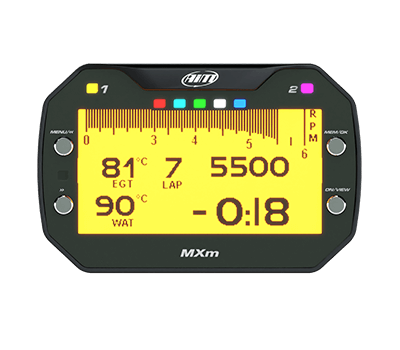

Display

  • Resolution: 268 x 128 pixels
  • Backlight: 7 configurable RGB colours

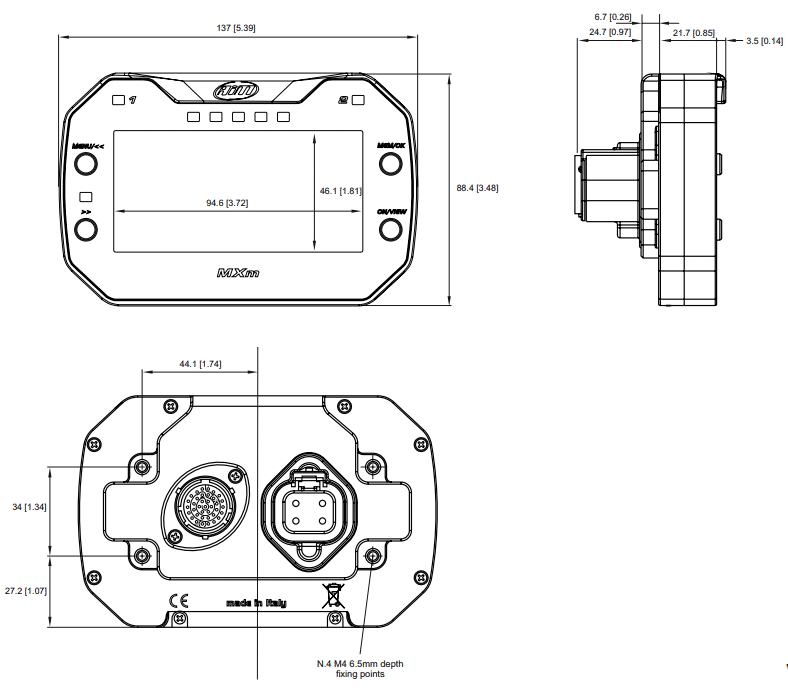

Diagram

mxm diagram
