MXPS
Technical Information

Plug & Play Dash Logger designed explicitly for Suzuki GSX-R 1000 Years 2017-2023 and Suzuki GSX-R 1000 R Years 2017- 2023.

• Yoshimura harness compatible

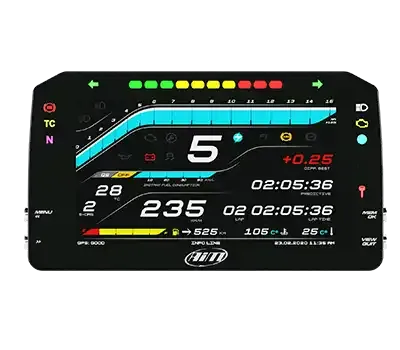

• 6" TFT high contrast
• 1,100 Lumen display
• 9 alarm LEDs,
• 10 shift lights LEDs
• 2 CAN connections
• 4 GB internal memory, anodized aluminium body
• 1 32 pins JAE main connector + 4 Binder 712 female connectors
• IP65

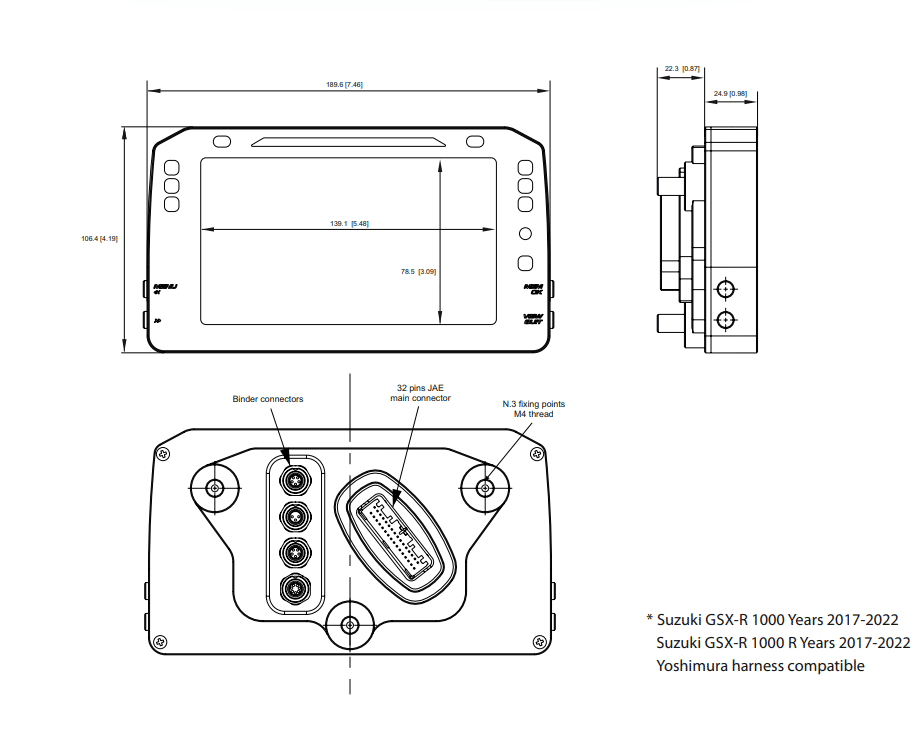

• Dimnesions: 189.6 x 106.4 x 24.9 mm
• Weight: 620g

• IP 65

• MXPS Plug & Play Dash
• Fixing/Installation Kit
• GPS09 Module

• Ambient Light sensor: Yes
• Alarm LEDs: 9
• Shift Lights LEDs: 10
• CAN connections: 2
• ECU connection: Yes
• Dedicated GPS09 Module: Included
• External modules: Channel Expansion, Lambda Controller, TC Hub, SmartyCam 3 cameras
• Wi-Fi connection: Yes
• Internal memory: 4 GB
• Body: Anodized Aluminum
• Connectors: 1 32 pins JAE main connector + 4 Binder 712 female connectors
• Dimensions: 189.6 x 106.4 x 24.9 mms
• Power consumption: 400 mA

• Display: 6” TFTs
• Resolution: 800x480 pixels
• Contrast: 600:1
• Brightness: 700cd/m2 - 1,100 Lumen
