The Dash Logger dedicated to Suzuki

GSX-R 1000 logo

Plug & Play

Exige logo
waveyLines 1 waveyLines 2 waveyLines 3
Suzuki logo

Designed for Suzuki
GSX-R 1000/R 2017-2023

The MXPS Suzuki dash logger is a plug and play motorbike device - ideal for riders who want advanced data logging and analysis features for both street and track settings, without a complex setup.

Just enjoy advanced features and focus on the ride.

View Installation Video
Suzuki GSX-R With MXPS dash display Suzuki GSX-R With MXPS dash display Suzuki GSX-R With MXPS dash display

Unlimited Power

The MXPS data logger has been specially designed to collect and display data from ECU, internal accelerometer, gyro, GPS09 Module (included in the kit), analogue/digital inputs and pre-defined math channels. Performance data collection can also be expanded by incorporating additional expansion modules on a Suzuki GSX-R 1000 motorbike.

No Fuss,
No Worry

Constantly Logging Your Data

The MXPS data logger offers comprehensive data display and logging capabilities directly from your vehicle.

Whatever Works For you

2 Display Styles

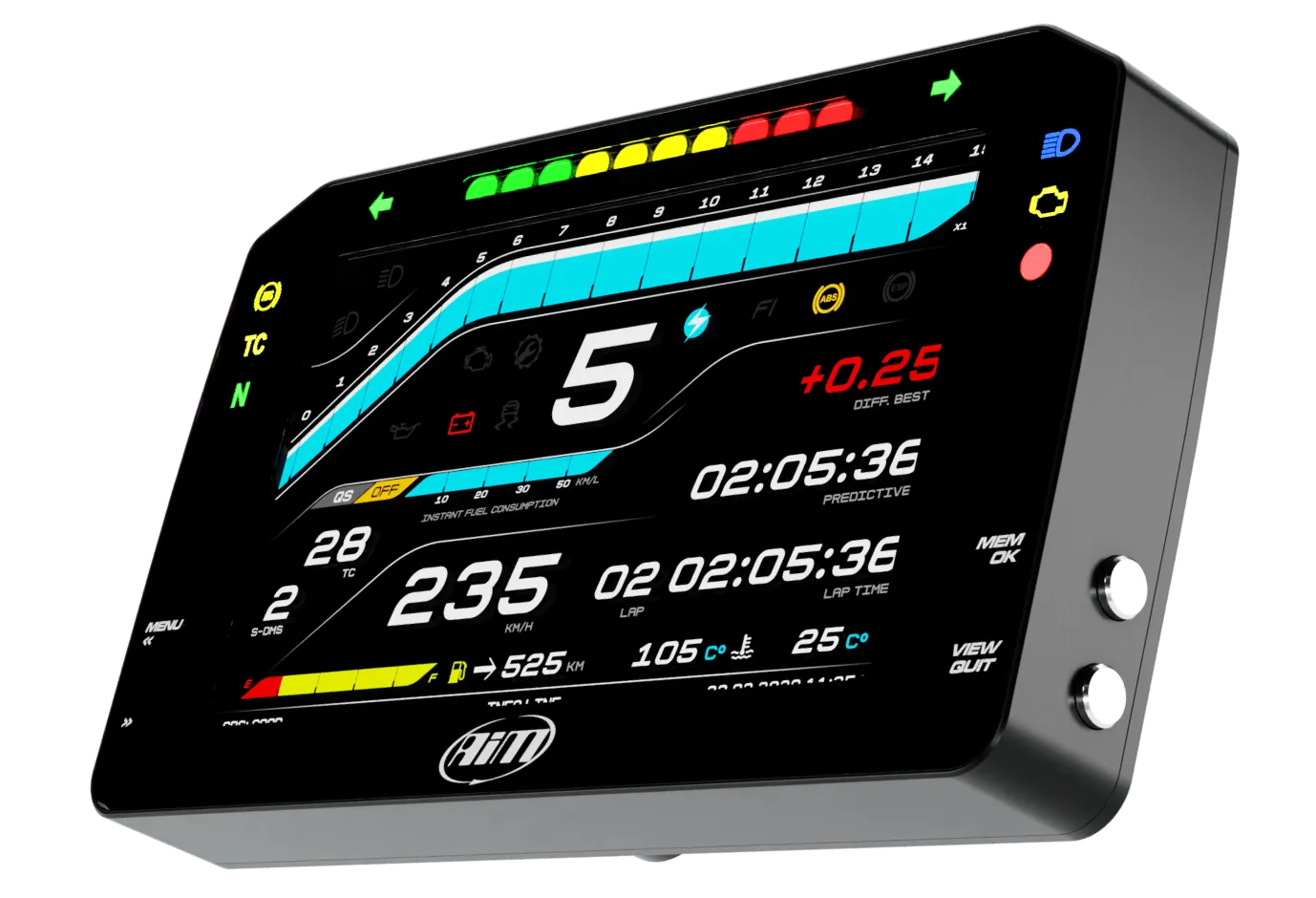

The MXPS dash logger features a 6" high resolution TFT display with configurable layouts in light and dark modes, allowing you to customise the display for any motorsport condition.

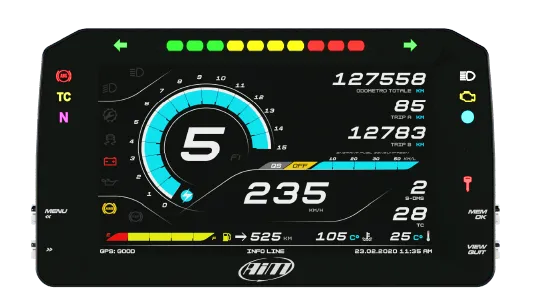

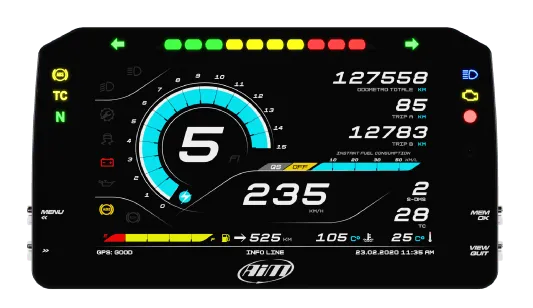

Analogue
v

MXPS analog display

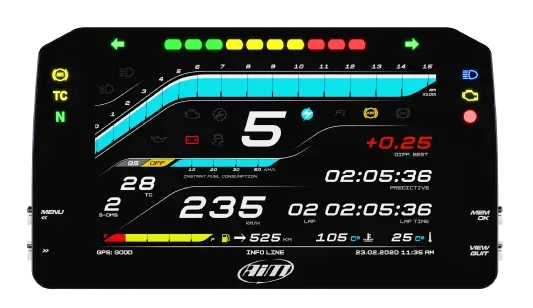

Digital
v

MXPS digtal display
Dark
Light

Integrated Shift Light Array

Equipped with 9 alarm LEDs and 10 shift light LEDs, the MXPS Suzuki dash is fully customisable to suit different performance parameters like gear shifts or warnings.

Delta Times

Delta Times provides instant feedback on your performance, showing how your current timing compares to your best.

More Control?

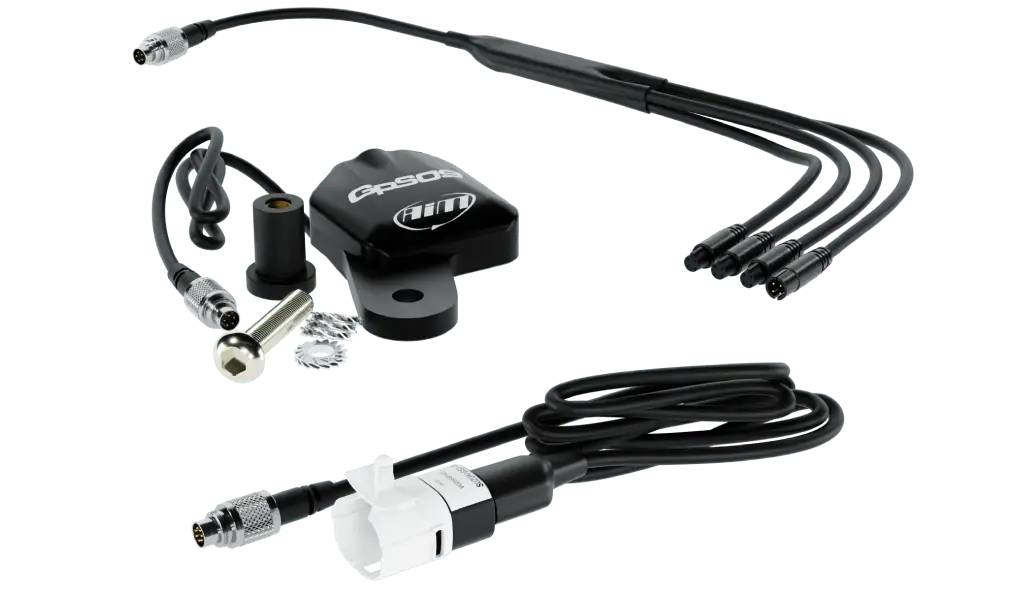

The Racing Kit

The additional racing kit expands the MXPS's capabilities significantly. It includes four analogue channels along with a K-Line harness and extension, transforming the dash logger into a comprehensive system. This setup allows for monitoring of 28 additional ECU channels and the connection of four extra sensors to fine-tune your vehicle's performance on the track.

AiM Racing Kit expansion

Racing Pedigree

FIM Endurance World Championship

FIM Endurance World Championship

Powered By

aim technologies logo
Suzuki MotorBike

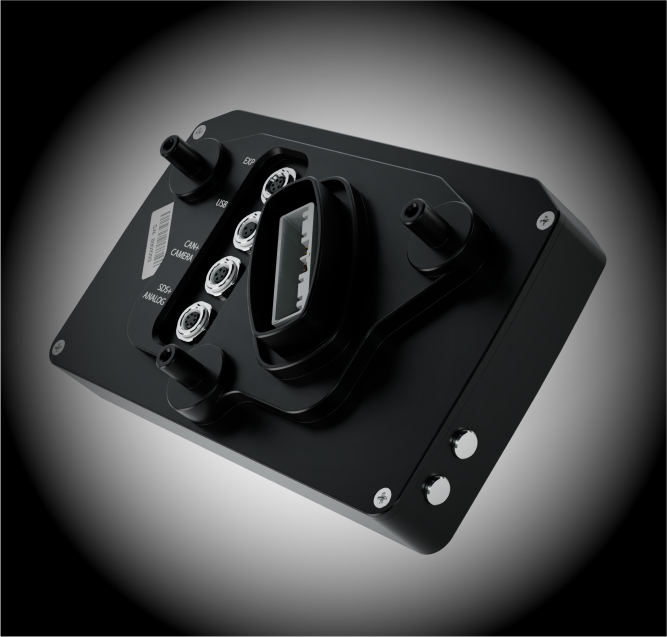

Connections & Expansions

EXP Connection: chevron

Upgrade your Suzuki dash with some of the best Aim expansions like GPS09c, Lambda Controller, Channel Expansion or even a SmartyCam 3 to record and log your ride.

USB or Wi-Fi Connection: chevron

Enables you to download data and configure your MXPS.

Camera Connection: chevron

Allows you to install a mirror camera.

SDS + Analogue Connection: chevron

Gives you the possibility to read 28 ECU extra channels and 4 user defined analogue inputs.

Connections & Expansions

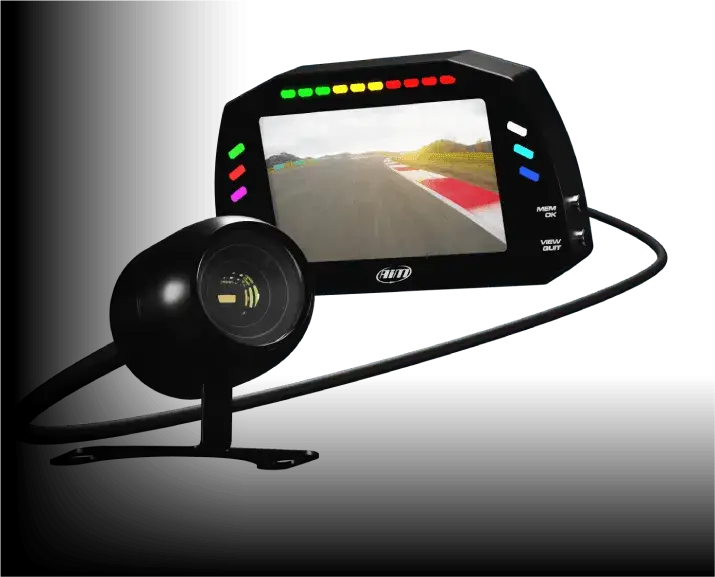

Watch Your Back

Upgrade your visibility with the new dual rear camera management, aiding in driving and parking.

Learn More
Aim Rear Camera

Transfer Data Fast

Simplify wireless data transfer with a secure 802.11 Wi-Fi connection, allowing for remote calibration and configuration up to 50 meters away.

Learn More
Connections & Expansions

How To Install The MXPS Dash Logger

The MXPS dash logger is a plug & play device for Suzuki GSXR 1000 motorbikes, making installation extremely straight-forward - simply fit the device into the OEM bracket and connect to the bikes existing connectors. For a more in-depth tutorial, take a look at our MXPS Suzuki GSXR 1000 installation video.

View Video

"If you can’t explain it simply, you dont understand it well enough.”
Albert Einstein

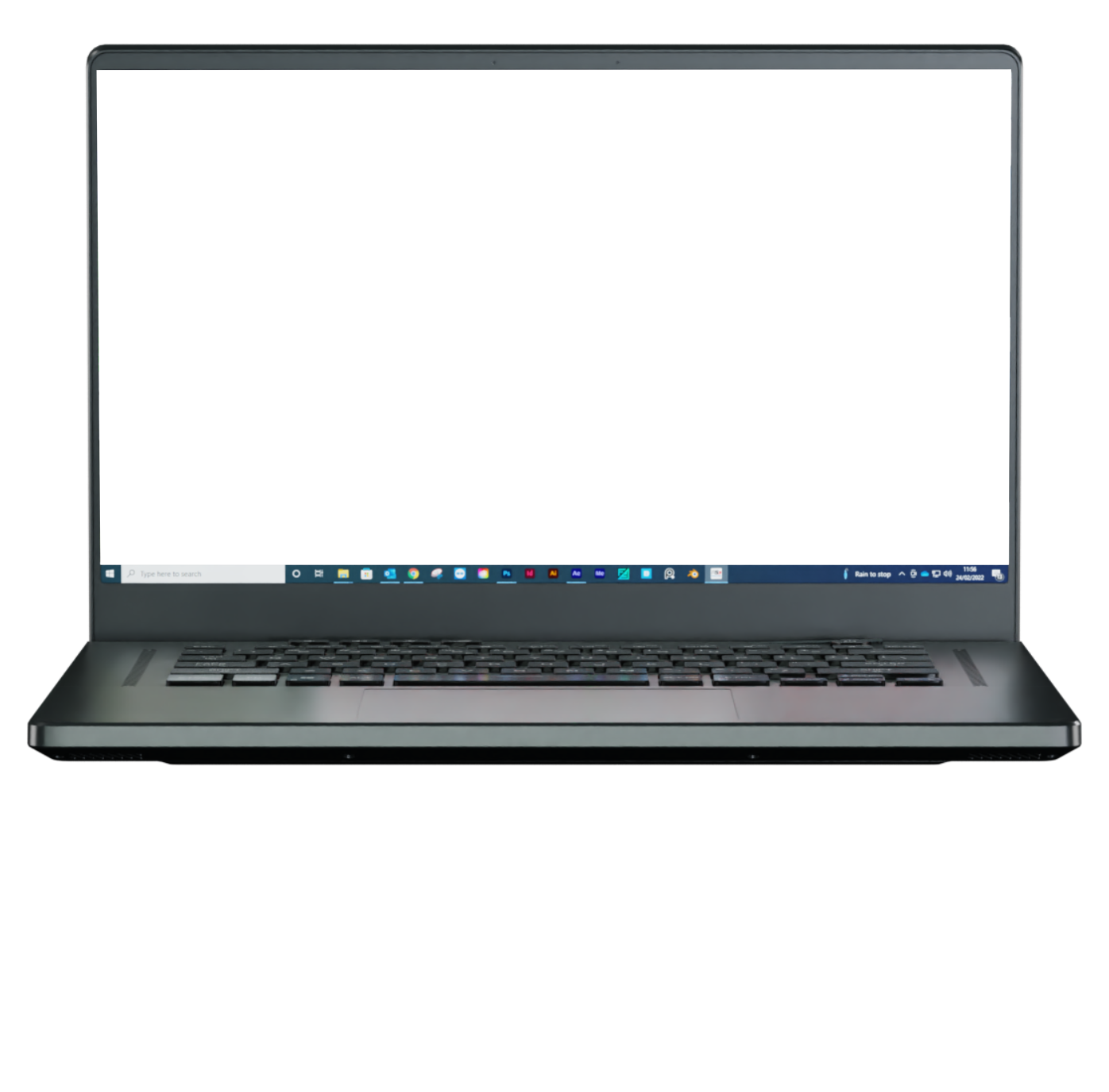

One of the many reasons that the MXPS is regarded as the best display loggers for Suzuki GSXR dashes is due to its easy configuration and integration with Race Studio 3 software. With a few easy to follow steps, you can:

  • Create, modify and manage configurations for a customised display
  • Perform in-depth data analysis to compare lap times, sector performance and more
  • Access the extensive track database within Race Studio 3 to ensure accurate lap timing and data logging
  • Save new track layouts directly from Race Studio for future sessions

Expand
Your System

The MXPS dash logger is compatible with a range of Aim devices and data logging systems to increase the range and depth of data collection and analysis.


  • Aim MXPS Dash Display Summary

    The Aim MXPS is a plug & play dash logger specifically designed for Suzuki GSX-R1000 and GSX-R1000R models from 2017 to 2023, offering both road and racing riders with a data logging dash display with advanced features.

    • Integrated GPS Module: The included GPS09 module connects via CAN, automatically recognising tracks and providing precise lap and split times to enhance performance analysis during track sessions.
    • Optional Racing Kit: An optional racing kit expands the MXPS's capabilities, transforming it into a complete datalogger. This allows for detailed performance monitoring and analysis using RS3 software.
    • Seamless Integration: The MXPS dash connects directly to the Suzuki GSX-R’s ECU, providing real time access to vital data such as RPM, oil pressure, speed & gear position.
    • High-Resolution Display: Its 800x480 pixel resolution, 6-inch TFT screen ensures clear visibility under various lighting conditions, without overpowering the Suzuki dash.
    • User-Friendly Interface: The MXPS dash features an intuitive menu system, simplifying navigation and configuration.
