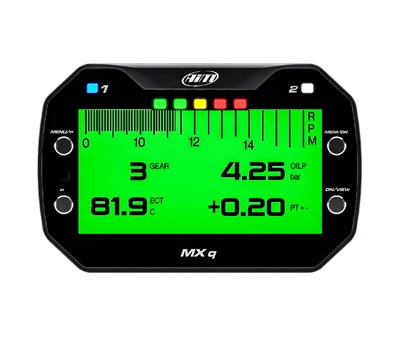

MXq
Technical Information
Model
MXm
Overview
The MXq dash logger is the lighter version of the MXm, divering only in the number of analogue and digital inputs, outputs and connectors. It delivers crucial racing data like speed, lap times, RPM, and gear selection, enhanced with multiple math channels. Its compact design fits easily in any car or bike, overing plug-and-play simplicity. Ideal for both professional and amateur racers, the MXq seamlessly integrates detailed performance tracking in a user-friendly format.
Key Features
- High contrast configurable display
- CAN & Analogue Data Input
- 5 configurable RGB LEDs Shift lights
- Waterproof
- Integrated GPS
- 5 configurable RGB colours
- 2 configurable RGB LEDs alarms
- Free race studio 3 download
Size & Weight
- Dimensions: 137 x 88.4 x 31.9 mm
- Weight: 330g
Waterproof
- IP 65
In The Box
- MXq
- RS232 / OBDII or RPM harness
Technical
- Ambient light sensor: Yes
- Shift Lights: 5 configurable RGB LEDs
- Alarm LEDs: 2 configurable RGB LEDs
- CAN connections: 2
- ECU connection: CAN, RS232 or K-Line to 1,000+ industry leading ECUs
- GPS: Integrated
- External modules: Lambda Controller, SmartyCam HD, ACC3
- Analogue inputs: 1 fully configurable, max 500Hz each
- Digital inputs: Low level coil RPM input, 0-5 V square wave
- WiFi connection: Yes
- Internal Memory: 4 GB
- Body: PA6 GS30%
- Pushbuttons: Metallic
- Connectors: 3 Binder connectors
Display
- Resolution: 268 x 128 pixels
- Backlight: 8 configurable RGB colours

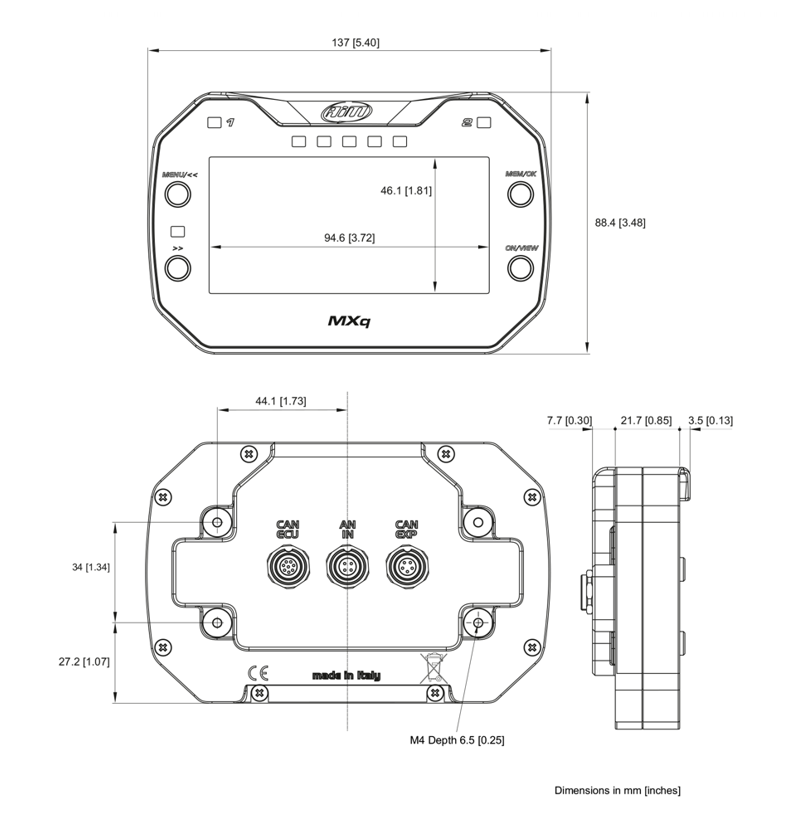

Diagram
