Overview

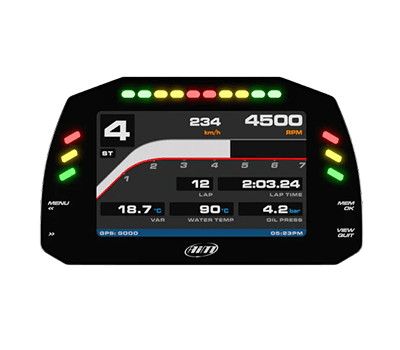

The Aim MXsl Dash Display an evolution of the hugely successful MXS Strada Dash Display,which is one of the most widely used racing dash displays used on tracks and streets all over the world. The MXsl has a 5″ compact colour display which configurable to show all the info coming from your Engine Control Unit (ECU), analogue / digital inputs, pre-defined math channels and the optional GPS Module.
The main addition to the Aim MXsl is the inbuilt power module. Offering 10 high power outputs that can be used to directly power components such as motors, lights, fans, pumps and other electrical devices without the need to use conventional relays and fuses. The unit can also detect short circuits, overcurrents and open circuits while recording them for later diagnosis. The error information can also be displayed on the dash if required. Each power output can also be configured to be activated by a combination math channels, analogue/digital inputs, pushbuttons or ECU fields.
Besides the new power module capabilities, the Aim MXsl dash retains all of the well-proven data logging and dash display functions as found in the MXS Strada as detailed below.
The main addition to the Aim MXsl is the inbuilt power module. Offering 10 high power outputs that can be used to directly power components such as motors, lights, fans, pumps and other electrical devices without the need to use conventional relays and fuses. The unit can also detect short circuits, overcurrents and open circuits while recording them for later diagnosis. The error information can also be displayed on the dash if required. Each power output can also be configured to be activated by a combination math channels, analogue/digital inputs, pushbuttons or ECU fields.
Besides the new power module capabilities, the Aim MXsl dash retains all of the well-proven data logging and dash display functions as found in the MXS Strada as detailed below.

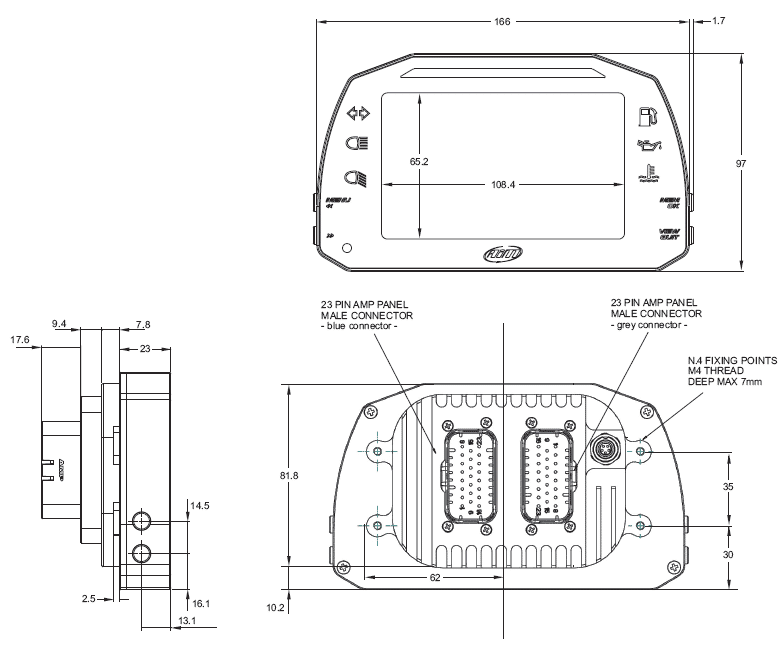

Size & Weight
- Dimensions: 169.4x97x23 mm
- Weight: 480g
Waterproof
- IP 65
In The Box
- 1 x MXsl
Technical
- Ambient light sensor: Yes
- Alarm LEDs: 6 RGB freely configurable
- Shift Lights : 10 integrated freely configurable RGB LEDs
- CAN connections: 3
- ECU connections: CAN, RS232 or K-Line
- ECU compatibility: + 1,000 industry leading ECUs
- Expansion CAN connection: GPS, Channel Expansions, Thermocouple Expansions, Lambda Controllers, SmartyCam
- Inputs: 8 fully configurable: analogue, digital, pull up/down on/off – Max 1,000 Hz each
- Speed input: 1
- RPM input: 1
- Digital outputs Low Side: 2 (1 Amp max)
- Digital outputs High Side:
- 10 protected (overcurrent, short circuit to gnd and to battery, overtemperature, open load detection, current fuse programmable)
- Eight 5 A outputs, two 10 A outputs
- Current sense
- Output pwm capable (100 Hz to 400 Hz)
- Body: Anodized Aluminum
- Pushbuttons: Metallic

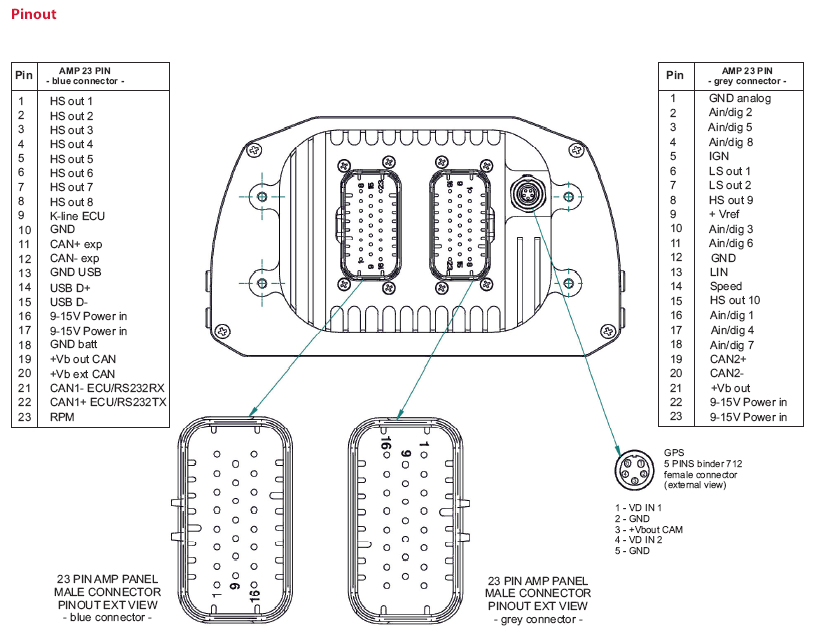

- Connectors: 2 AMP connectors
- Power consumption: 400 mA without power output lines active
Display
- Display: 5" TFT
- Resolution: 800 x 480 pixels
- Contrast: 600:1
- Brightness: 700cd/m2 - 1,100 Lumen
