MyChron 6 vs 2T

MyChron 6 vs 2T: What Are The Differences?

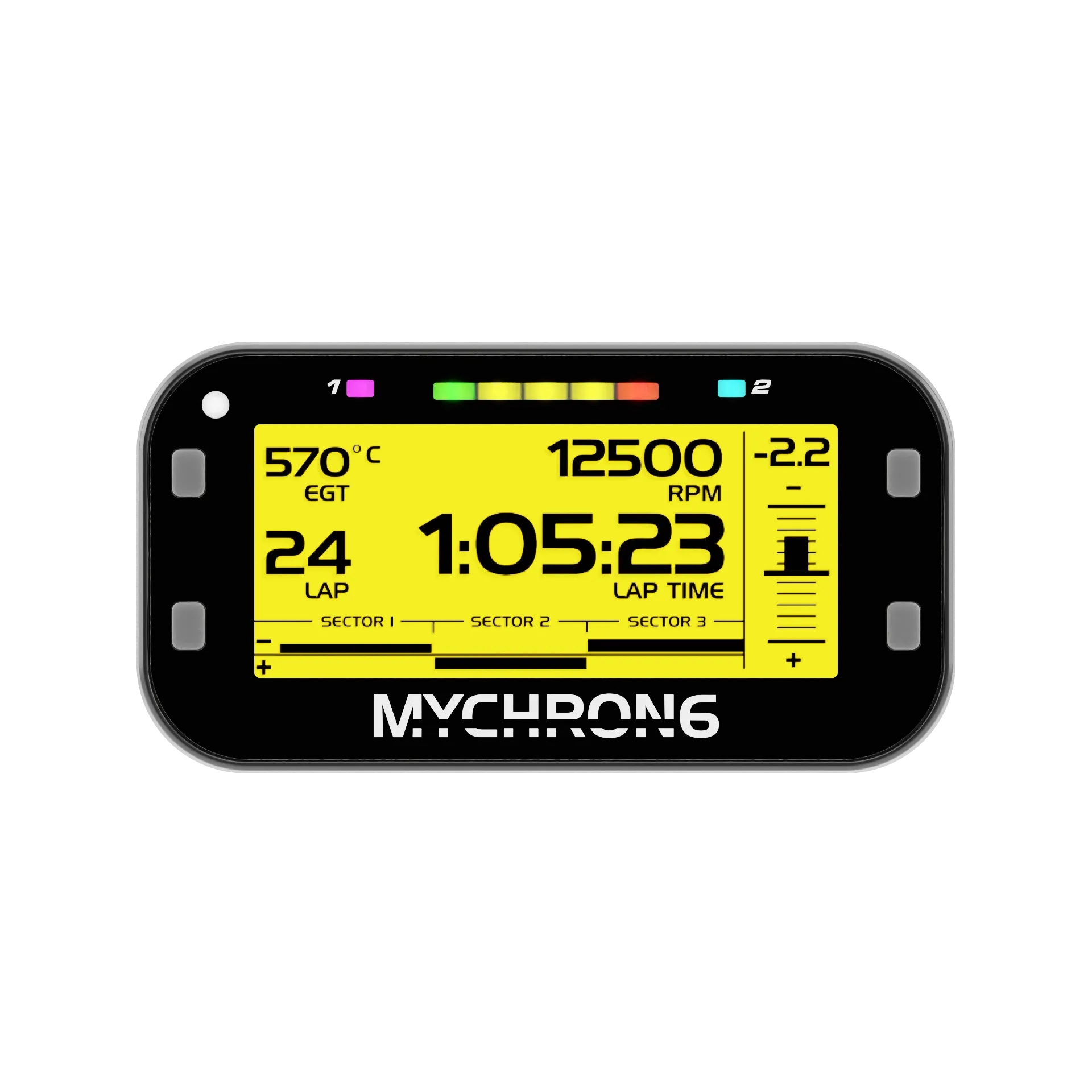

The MyChron 6 and MyChron 6 2T are advanced data loggers designed for kart racing, offering features that help drivers monitor and enhance their on-track performance.

While they share many capabilities and features, there are some key differences between the 2 models that you should be aware of. In this guide, we will take you through the key similarities and differences between the MyChron 6 and 2T to give you a better idea about which one might be best for your motorsport needs.

MyChron 6 vs 2T Comparison

MyChron 6 lap timer MyChron 6 2T lap timer
Display: Graphical display with 320x136px resolution & 8 configurable RGB backlight colours Display: Graphical display with 320x136px resolution & 8 configurable RGB backlight colours
Shift lights/alarm LEDs: 5 & 2 configurable RGB LEDs Shift lights/alarm LEDs: 5 & 2 configurable RGB LEDs
Body: 150.0 x 79 x 36.6 mm, made of glass fibre-reinforced nylon with metallic push buttons Body: 150.0 x 79 x 36.6 mm, made of glass fibre-reinforced nylon with metallic push buttons
Integrated track database: The lap timer comes with 2,000 pre-set tracks Integrated track database: The lap timer comes with 2,000 pre-set tracks
GPS: 25Hz for pinpoint accuracy GPS: 25Hz for pinpoint accuracy
External power: 9÷15 V External power: 9÷15 V

Connectors:

  • 1 binder 712 fem, 3-pins
  • 1 binder 712 fem, 5-pins
  • 1 binder 712 fem, 8-pins

Connectors:

  • 1 binder 712 fem, 5-pins
  • 1 binder 712 fem, 7-pins
  • 1 binder 712 fem, 8-pins
Temperature inputs: 1 input to monitor a single temperature Temperature inputs: 2 inputs to monitor multiple temperatures simultaneously

MyChron 6 vs 2T Similarities

As you can see from the table, there aren’t many differences between the MyChron 6 vs 2T. They are both advanced data logging lap timers designed for kart racing, offering features that help drivers monitor and enhance their on-track performance, such as:

  • HD graphical display
  • Shift lights
  • Alarm LEDs
  • Integrated track database
  • IP67 waterproof body
  • 370g lightweight design
  • Rechargeable lithium battery
  • Integrated 25Hz GPS for accurate lap times
  • Compatible with external modules like the MyChron Expansion, Data Hub and SmartyCam 3 Cameras
  • View lap times, best lap, RPM, gear number, track map and more on the device’s pre-configured pages
  • View split and best theoretical times for your best lap

Learn More: MyChron 6 vs Mychron 5S

MyChron 6 vs 2T Differences

Although there are only 2 differences between the 2 devices—the number of temperature inputs available and the connector pins—they can make a significant difference when it comes to which device is right for you.

For example, if you want to monitor multiple temperatures at the same time like water temperature and exhaust gas temperature, but you only have the MyChron 6, then you would only be able to monitor one at a time. However, if you opt for the MyChron 6 2T, you have the capacity to monitor multiple temperatures if needed.

To give you an idea of how these data loggers differ, please take a look at our diagrams below.

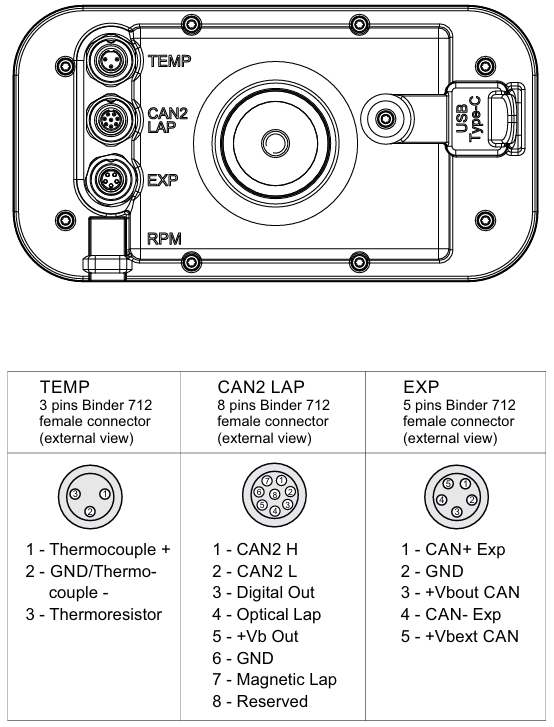

MyChron 6 pinout

MyChron 6 Pinout

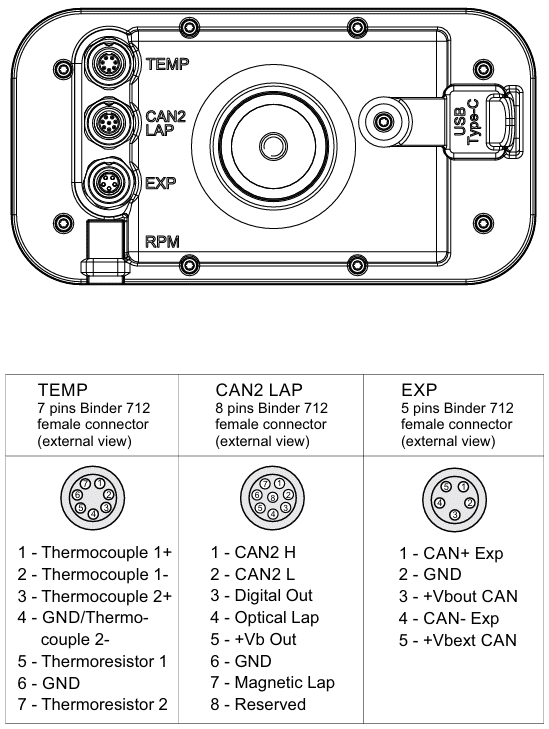

MyChron 6 2T pinout

MyChron 6 2T Pinout

Choosing The Right Model

When deciding between the MyChron 6 and the MyChron 6 2T, the main thing that you should consider is your specific data monitoring needs:

  • If you only need to track one engine temperature parameter, then the MyChron 6 is likely to meet your requirements.
  • If you need to monitor two engine temperatures simultaneously, the MyChron 6 2T is the only model you should consider.

Regardless of which device you choose, both models provide comprehensive data logging and analysis features, making them a valuable asset for kart racers aiming to optimise their performance. For more information on our karting lap timers, take a look at the specific product page at Aim Technologies for more details or shop the range at Aim Shop to see for yourself why MyChron devices are sought after in the motorsport community.
