Model

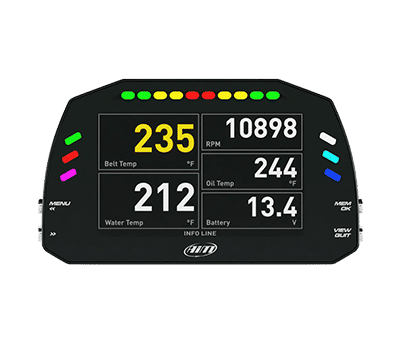

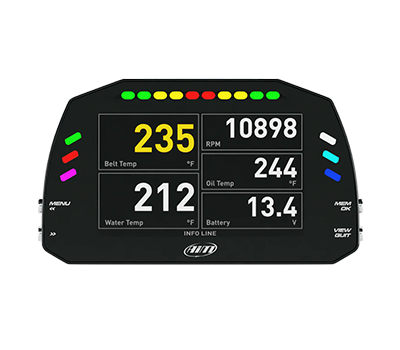

PDM 5" Display
PDM 5" display

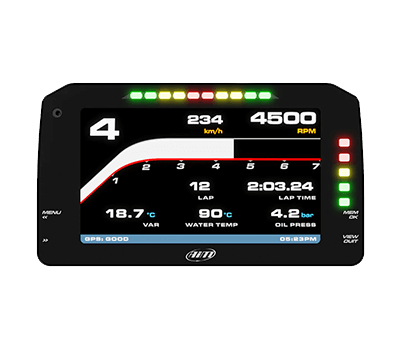

PDM 6" Display
PDM 6" display

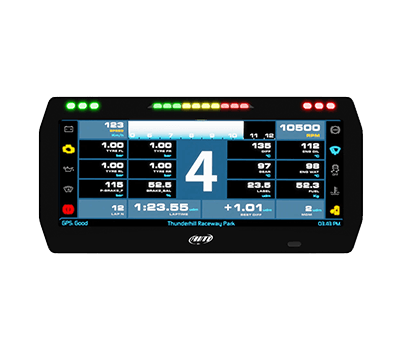

PDM 10" Display
PDM 10" display
Overview
The Aim TFT dash displays, available in 5", 6", and 10" sizes, are designed for compatibility with Aim PDM kits. They serve as suitable replacement units for existing displays or as upgrades for kits that originally do not include a dash display. These displays feature distinct race or road icons, enhancing the interface for different applications. Additionally, the 10" model offers an optional GPS Module connection, expanding its functionality.
Key Features
- 5" TFT dash display
- Five status information LEDs
- Fully configurable display
- Race or Road Icons
- Ten shift light LEDs
- Range of layouts
- 6" TFT dash display
- Five status information LEDs
- Fully configurable display
- Race or Road Icons
- Ten shift light LEDs
- Range of layouts
- 10" TFT dash display
- Six status information LEDs
- Fully configurable display
- Race or Road Icons
- Ten shift light LEDs
- Range of layouts
Size & Weight
- Dimensions: 189.6 x 106.4 x 24.9mm
- Weight: 640g
- Dimensions: 189.6 x 106.4 x 24.9mm
- Weight: 640g
- Dimensions: 278.0 x 135.0 x 26.2mm
- Weight: 1000 g
Waterproof
- IP65
- IP65
- IP65
In the box
- 5" TFT Dash Display
- 6" TFT Dash Display
- 10" TFT Dash Display
Technical
- Ambient Light Sensor: Yes
- Status information LEDs: 5
- Shift Light LEDs: 10
- Body: Anodised Aluminium
- Pushbuttons: Metallic
- Connectors: LVDS Link 4 Pins Rosenberger male connector
- Power consumption: 150 mA
- Ambient Light Sensor: Yes
- Status information LEDs: 5
- Shift Light LEDs: 10
- Body: Anodised Aluminium
- Pushbuttons: Metallic
- Connectors: LVDS Link 4 Pins Rosenberger male connector
- Power consumption: 150 mA
- Ambient Light Sensor: Yes
- Status information LEDs: 6
- Shift Light LEDs: 10
- Body: Anodised Aluminium
- Pushbuttons: Metallic
- Connectors: LVDS Link 4 Pins Rosenberger male connector
- Power consumption: 250 mA
Display
- Display: 5" TFT
- Resolution: 800 x 480 pixels
- Contrast: 600:1
- Display: 6" TFT
- Resolution: 800 x 480 pixels
- Contrast: 600:1
- Display: 10" TFT
- Resolution: 1280 x 480 pixels
- Contrast: 1,100:1

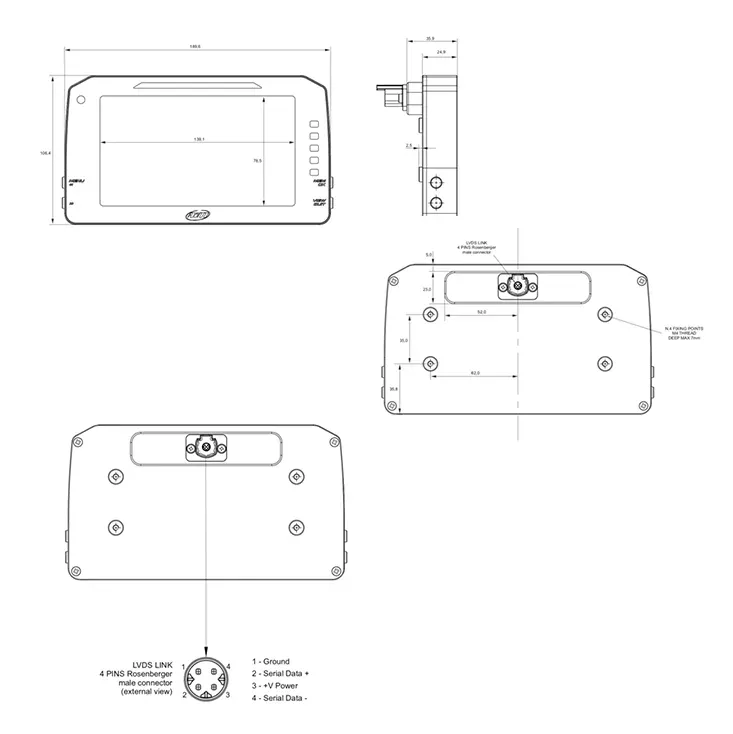

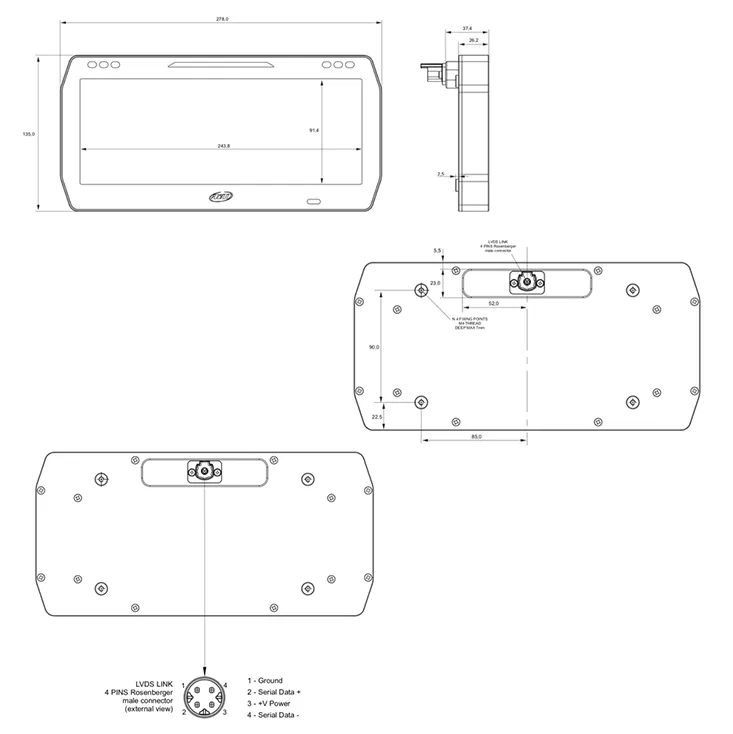

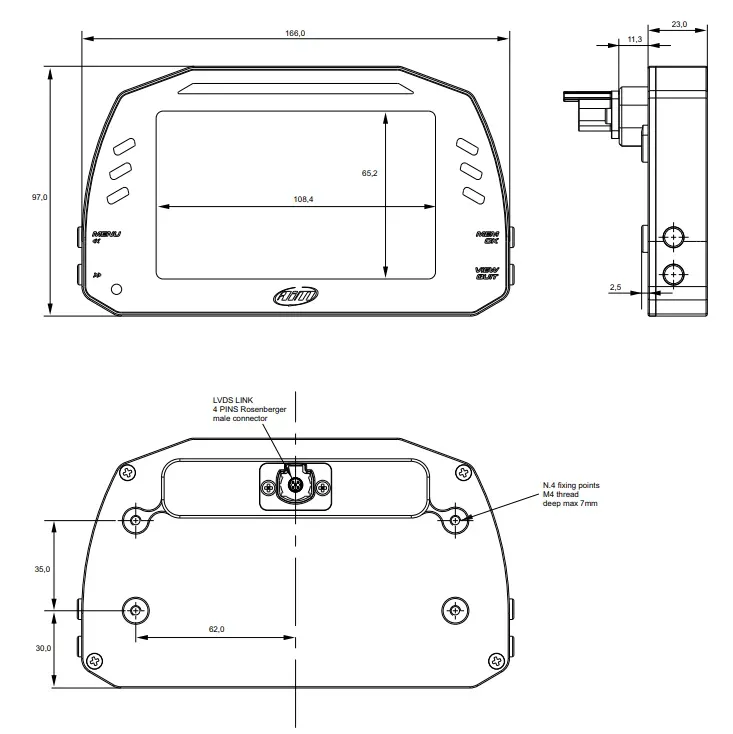

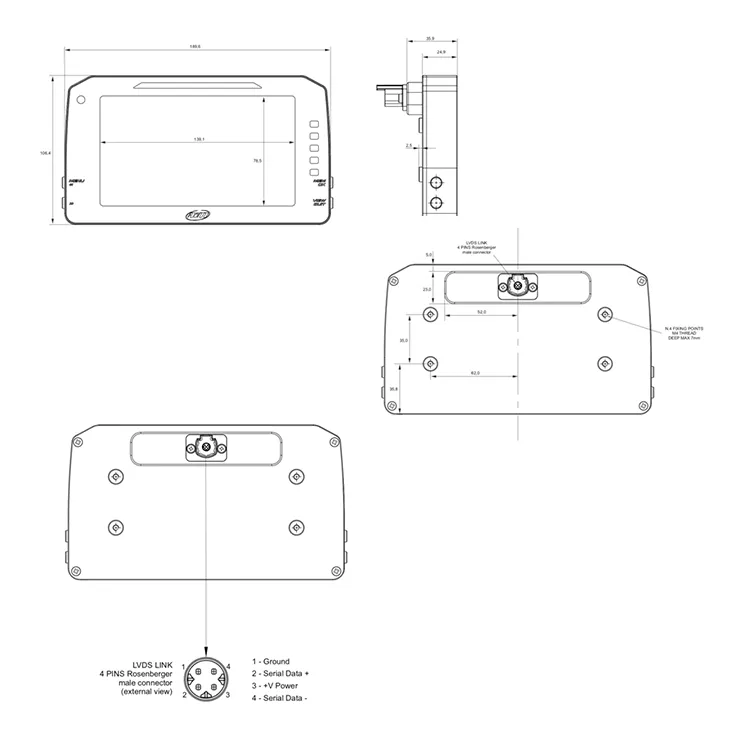

Diagram
×
![]()
