PDM
Technical Information

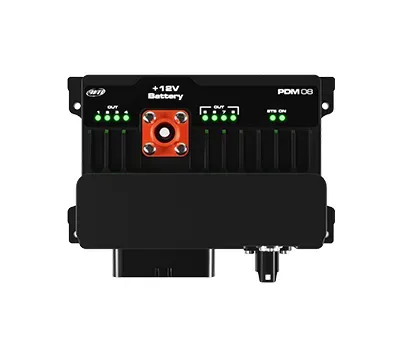

PDM08

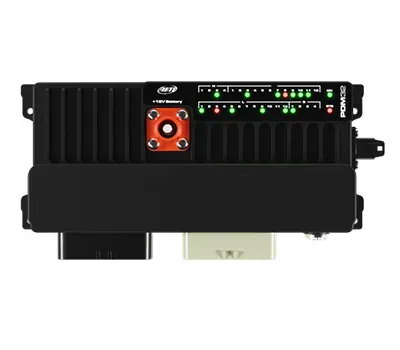

PDM32

Model

PDM08
PDM08
PDM32
PDM32

Overview

The Aim PDM is available as an 8 or 32 channel advanced power distribution module designed to power a multitude of vehicle circuits, removing the need for traditional fuse boxes and relays.

Key Features

  • 8 RGB LEDs
  • GPS lap timing (optional)
  • Data logging facility
  • Six analogue digital inputs
  • Power outputs
  • Two-speed inputs
    • 32 RGB LEDs
    • GPS lap timing (optional)
    • Data logging facility
    • 28 High side outputs
    • Eight analogue digital inputs
    • Four digital inputs
    • Two-speed inputs
    • 4 Half-bridge outputs

Size & Weight

  • Dimnsions: 161 x 100.6 x 50.6mm
  • Weight: 500g
  • Dimnsions: 234.5 x 94.6 x 49.5mm
  • Weight: 761g

Waterproof

  • IP 65
  • IP 65

In The Box

  • Power Distribution Module PDM08
  • Surlok Power Connector
  • Aim Sticker
  • Power Distribution Module PDM32
  • Grey & black 35 pin plug and 70 gold pins
  • CAN exp cable
  • Surlok Power Connector
  • Download Cable
  • Aim Sticker

Technical

  • LEDs: 8 RGB LEDs + 1 PDM ON + 1 PDM STS (Status)
  • Inputs: 6 fully configurable, max 500 Hz each Pullup, Pulldown, analogue/digital
  • Power outputs:
    1 with serie diode rated up to 20 A
    1 rated up to 25 A
    6 rated up to 15 A
    Protected for: over voltage, under voltage, over current, over temperature
    All outputs have internal freewheeling diode
    Total max current: 100 A
  • Lin bus: 1
  • CAN connections: 3
  • Internal memory: 4GB
  • External modules: GPS Module, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD, Formula Steering Wheel, Memory Module, Remote I/O pushbutton module
  • External Analogue Camera input: NO
  • Connectors: 1 AMP connector + 1 Amphenol Surlok connector + 1 Rosenberger connector
  • Remote display connection: 1 Aim stream output
  • Body: Anodised Aluminium
  • LEDs: 32 RGB LEDs + 1 PDM ON + 1 PDM STS (Status)
  • Inputs: 14 Fully Configurable
    max 500 Hz each: 8 analogue/digital
    4 digital inputs, 2-speed input
  • Power outputs:
    4 rated up to 20 A (high power)
    12 rated up to 15 A (mild power)
    12 rated up to 10 A (low bridge)
    4 rated up to 35 A (half-bridge)
    Protected for: over voltage, under voltage, over current, over temperature
    Total max current: 120 A
  • Lin bus: 1
  • CAN connections: 3
  • Internal memory: 4GB
  • External modules: GPS Module, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD, Formula Steering Wheel, Memory Module, Remote I/O pushbutton module
  • External Analogue Camera input: 2
  • Connectors: 2 AMP connector + 1 Amphenol Surlok connector + 1 Rosenberger connector
  • Remote display connection: 1 Aim stream output
  • Body: Anodised Aluminium

Diagram

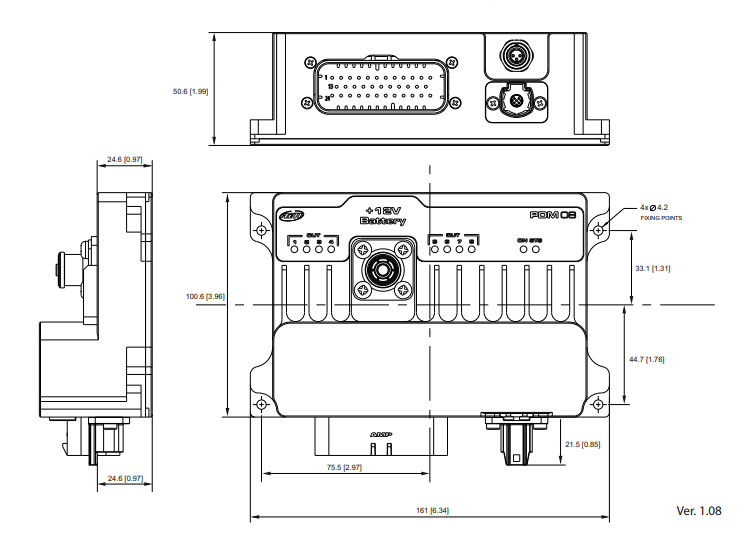

pdm08 diagram

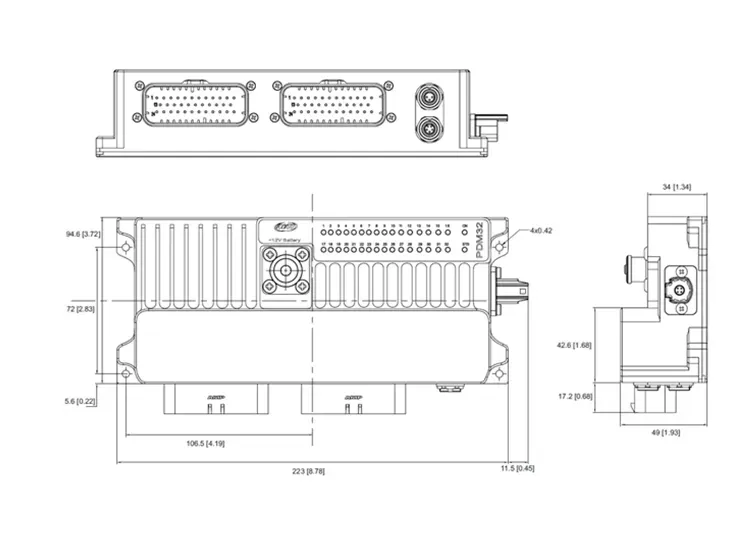

pdm32 diagram
