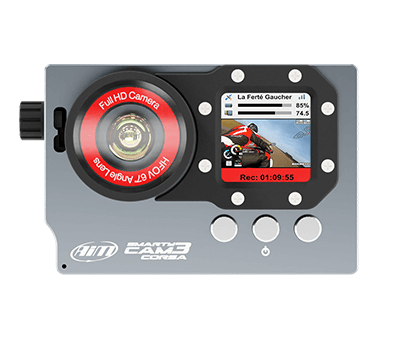

SmartyCam 3 Corsa
Technical Information

The SmartyCam 3 Corsa: The Ultimate Motorsports Camera. Engineered to deliver unparalleled video performance, with integrated GPS and ECU data for complete and comprehensive information.

• IP65 Rated
• Automatic Track Selection
• Full HD Images 1080p, 60fps
• Auto Start/Stop Recording
• Custom Overlays
• Sapphire Lens Glass
• 1/4" -20 UNC Fixing Point
• New Fast locking system
• USB C Port for PC/Laptop
• ECU Can Input
• Support SD Card
• Video & Data Saved to SD Card

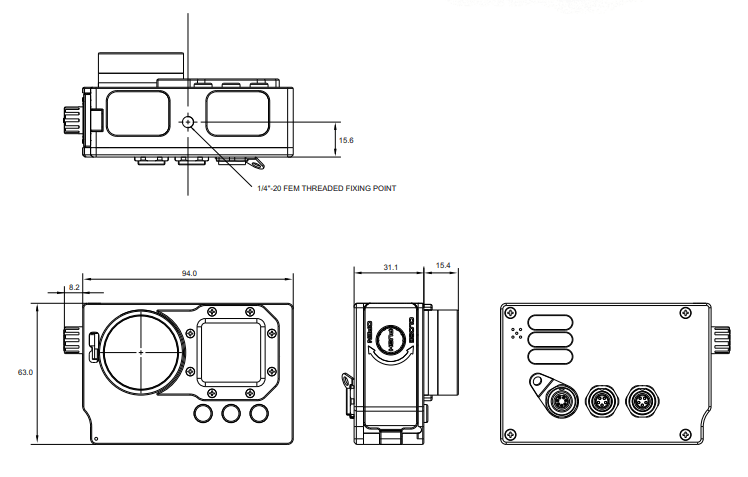

• Dimnsions:102.2 x 63 x 46.5 mm
• Weight: 280g, battery included

• IP 65

• SmartCam 3 Corsa
• USB-C Cable
• 712 5 Pin Male
• 2 or 4 Metre Patch Cable

• Video format: H.264 1920 x1080 pixels @ 60 fps
• Lens: Low distortion camera lens
• CMOS sensor: Global Shutter
• Field of view: 67° or 84°
• Internal battery: Rechargeable lithium battery
• External power: 9-15 Volt
• Support microSD car: Up to 2TB
• Connectors: 3 Binder 712 female 1 USB-C
• Usage temperatures: -10°C/+50°C
• Auto power ON/OFF: Yes
• Auto Start/Stop Recording: Yes

• Display resolution: 128 x 128 pixels

• User Guide
• Technical Sheet
• CAD Model
• Other documents
• Race Studio 3
