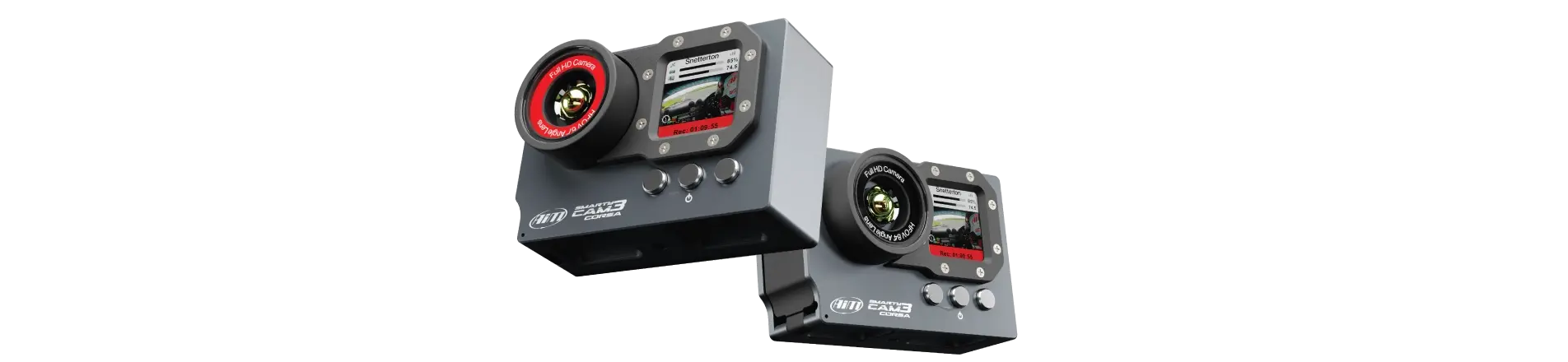

SmartyCam 3 Corsa
All-in-One Onboard Camera
Packed with all the things you want in an action camera
-
Real Time Data Overlay
The SmartyCam 3 Corsa allows all channels to be displayed on the video footage which you can review with our new Race Studio 3 Analysis software
-
Automatic Start & Stop
The SmartyCam 3 Corsa can automatically power on and off in-sync with your engine, and can auto start/stop recording based on parameters set by the user
-
No "Wave Effect"
The SmartyCam 3 Corsa includes a global shutter CMOS sensor and a low distortion lens with an array of field of view options, it is infallible in providing you with smooth and effortless footage
-

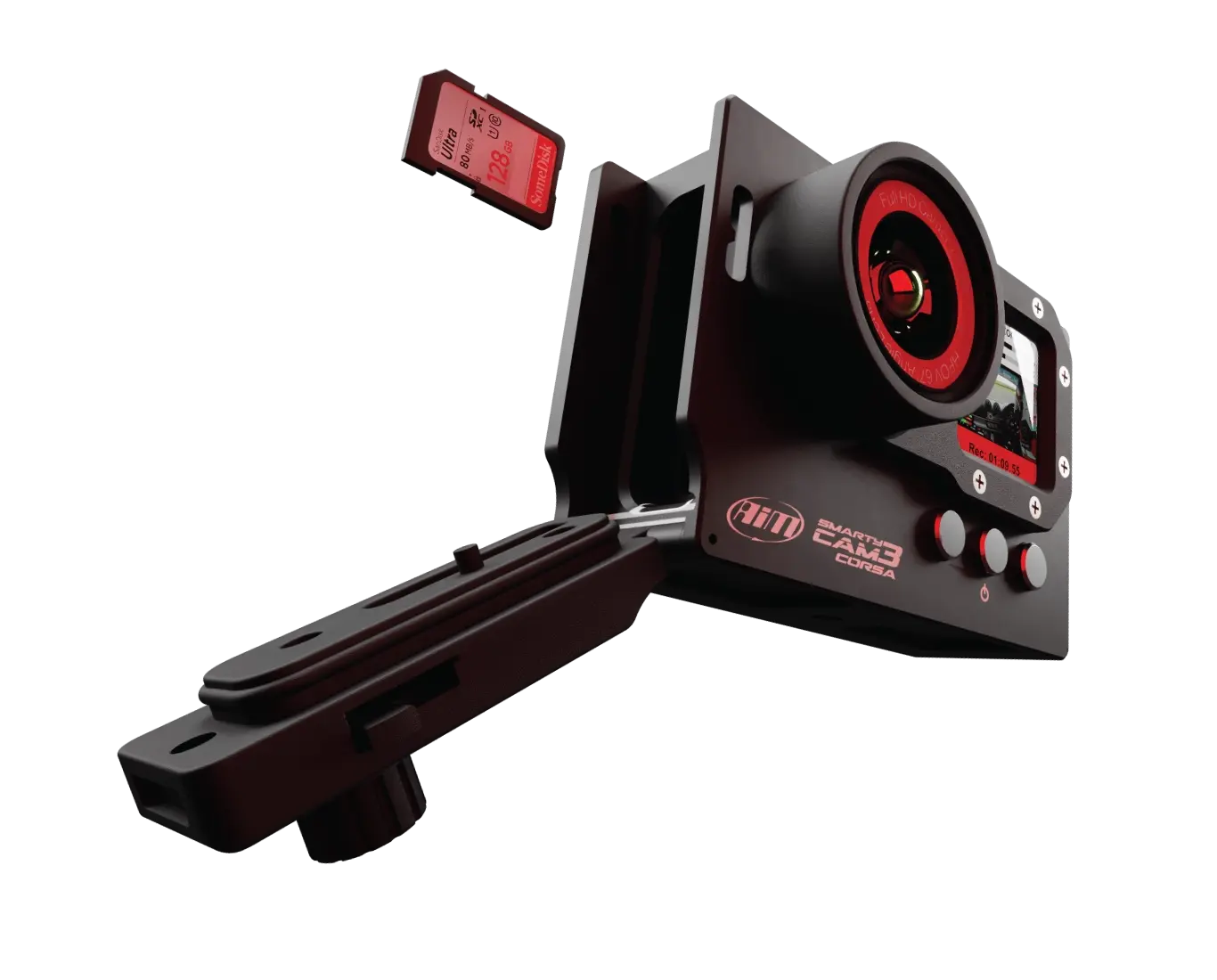

All Your Data on SD Card
SmartyCam 3 Corsa has smaller files due to a perfect balance between video quality and file size. Enjoy up to 2TB on a supported SD card, 100% protected from air and weathering
-
Full Internal Datalogger
With a built-in data logger, you can view all the channels displayed on the video footage and review them with Race Studio 3 Analysis
-
ECU connections
The SmartyCam 3 Corsa can be connected through the CAN network to Aim Loggers, MX Series, MXL2, MyChron, Solo2 DL, EVO5, ECU Bridge, and more
The Best Motorsport Action Camera
The SmartyCam 3 Corsa combines excellent video quality with real time data integration, making it ideal for motorsport enthusiasts looking to enhance their performance with video and telemetry overlays
Compact Motorsport Optics
Rectilinear Lens
Our Smoothest Recording Yet
1920×1080 FHD
Crystal-Clear Quality
67°, 84° FOV Lens
Withstanding the Harsh Motorsport Weather Conditions
Global Shutter CMOS
Eliminating any Wave Effect
No “Wave-Effect” with Global Shutter CMOS
Standalone Features
The SmartyCam 3 Corsa offers a CAN expansion that connects with various Aim devices. Additionally, it comes with unterminated CAN connections, allowing it to function as a standalone camera compatible with any system, regardless of your vehicle or equipment setup.
Configurable Overlays
The SmartyCam 3 Corsa provides configurable overlays such as live throttle trace amongst many other exciting features. With auto start/stop provided, just set and forget, then you can overlay your data to improve your performance for your next race.
Automatic Track Selection
SmartyCam 3 Corsa can automatically recognise which track you're on, and begin mapping - if your track does not register, you can create your own custom track within Race Studio 3.
Designed for
the Extreme
SmartyCam 3 Corsa is built to last: using a rechargeable lithium battery, powered by the vehicles own electrical system and Sapphire frontal glass that can challenge the stones, dirt, insects, and other obstacles thrown in your path, your SmartyCam 3 is invincible.
Compatible With Various Aim Devices
The SmartyCam Corsa can easily integrate with Aim devices like the Solo 2 DL data logger, GPS09 module and data hub to create a fully synchronised motorsport setup that captures, logs and overlays important aspect of your vehicle’s performance to enhance real time driving and post-race analysis.
Mounting
Brackets
Provide easy installation for cars, motorbikes, off-road & drag racing setups
Find out more
"If you can’t explain it simply, you dont
understand it well enough.”
Albert Einstein
One of the many reasons that the SmartyCam 3 Corsa is regarded as one of the best onboard action cameras in the motorsport industry is due to its easy configuration and integration with Race Studio 3 software. With a few easy to follow steps, you can:
- Configure graphical overlays for data
- Create custom tracks if necessary (the camera automatically recognises the track you’re racing on from a database of 4,000+ tracks)
- Analyse, review and compare performance data
- Customise layouts for performance metrics
-
SmartyCam 3 Corsa Summary
The SmartyCam 3 Corsa is a specialised motorsport camera designed for professional and amateur racing. Its unique features enhance data integration and video quality in high-speed environments.
- Compact design: 102.2 x 63 x 46.5mm with a rechargeable battery included, making it ideal for a variety of cockpits.
- High-quality video: Full HD 1920 x 1080p recording at 60 FPS.
- Durable: This onboard camera is designed to excel in extreme motorsport conditions due to its tough and durable casing - sealed to IP65 waterproof standard with a sapphire frontal glass.
- No wave-effect: This action camera features lenses specifically designed to avoid distortion and eliminate wave effects, making it ideal for motorsport setups.
- Available in 2 lens options: The 67° lens is ideal for closed-roof cars as its field of view is just within the windscreen pillars. The 84º lens option is ideal for karts, open-roof and formula cars, where there is ample view of the track from the vehicle.
- Built-in data logger: When connected to an Aim data logger or GPS module, the SmartyCam 3 Corsa records all of the displayed channels data onto a SD card, which can be reviewed later using Race Studio 3 software.

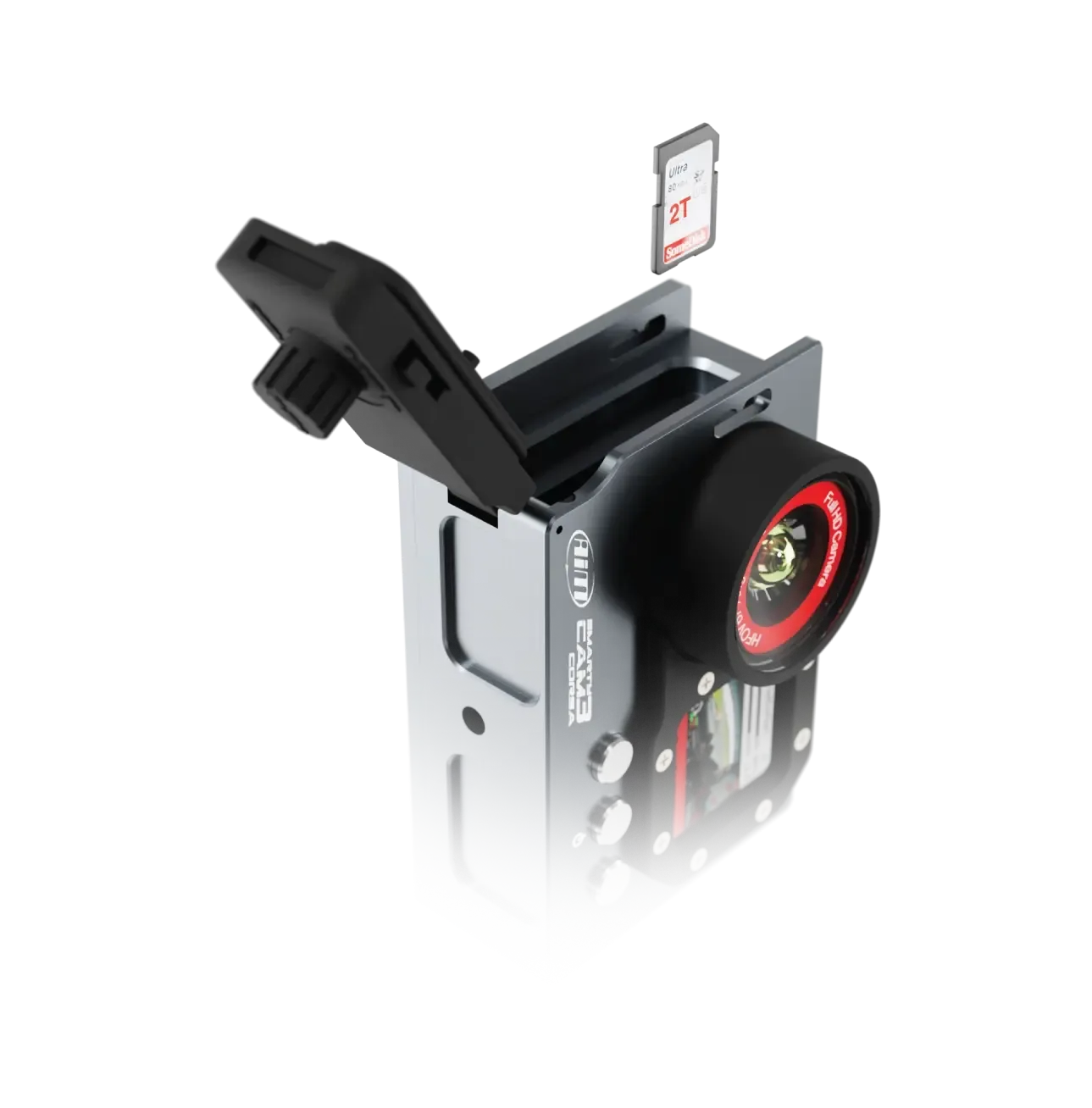

- Storage capacity: Videos are stored on a separate SD card, up to 2TB in size. You can select 3 different recording quality options: 1 hour high quality = 4GB, 1 hour standard quality = 2GB or 1 hour low quality = 1.5GB.
- Race Studio 3: Customise and configure your overlays to capture the data that’s the most important to you.
- Automatic start/stop: Automatic start/stop technology ensures that the camera will automatically start recording, so drivers don’t need to worry about turning the camera on/off.
- Automatic track selection: When connected to a GPS module, the camera recognises the track you are at from its vast track database, so there is no need to set up points for lap timing.
- Front display: A 128x128 pixel TFT colour display shows drivers immediate video playback.
