Tyre Temperature and Pressure Monitoring Kit
Technical Information
Model
Tyre pressure monitoring kit
Overview
The TPMS Plug & Play Car Racing Tyre Pressure Monitoring System is the ultimate kit for alerting drivers to a change in tyre pressure and for providing data on tyre pressures throughout your race.
Key Features
- Compatible with our dash display/Loggers
- 1 Mbit CAN interface
- Pressure accuracy +/-20Mbar
- Up to 100Hz sampling frequency
- Manage multiple wheelsets
- Suitable for Motorsport
- CE & FCC Compliant
- Up to 16 temperature Channels per Sensor

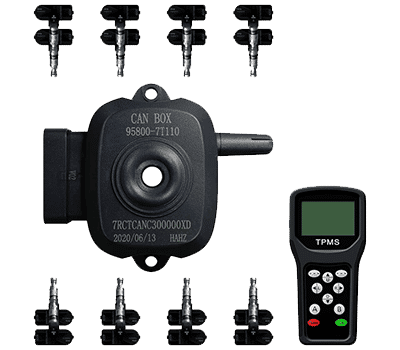

In The Box
- Sensors 4, 8, 12, 16, 20, 24 - Depending on order at checkout
- x 1 CAN Receiver
- Wiring Harness
- Hand Programmer Unit - If selecting 16 Sensors or more
Sensor Specification
- Sensor Pressure Measurement Range: 0-8000 mbar
- High-Frequency Modulation Mode: FSK
- Sensor Temperature Measurement Range: -40°C to 125°C
- Sensor Temperature Resolution: 1°C
- Sealing: IP67
- Battery Lifespan: Min 2 race seasons
- RF Frequency: 433.92 MHz
- High-Frequency Emission Power: <8dBm (50ohms)
Receiver Wiring
- Wire: 0.35mm/12/0.20
- Cable Length: 300mm
- Connector: AMP SuperSeal 6 way socket
- Mating Connector: AMP SuperSeal 6 way plug
- Wire Colour Code
- RED: Switched battery positive
- Black: Ground
- White: Shield (Maybe Grounded)
- Green: CAN-
- Yellow:CAN+
Hand Programmer Unit
- Reads Temperature, Pressure, Voltage and Serial Numbers
- Rechargeable with USB cable
- Programmes replacement or additional sensors

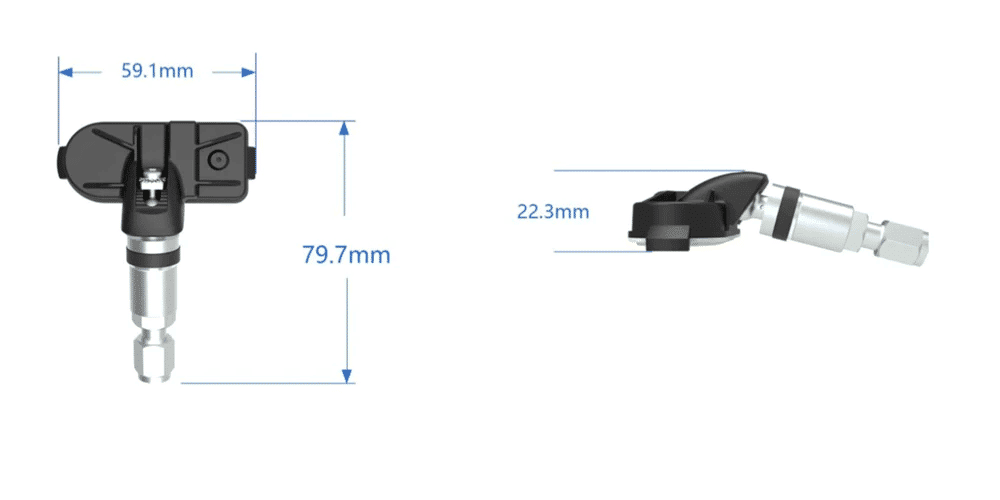

Diagram
