Tyre Temperature and Pressure Monitoring SystemTTPMS

TPMS Tyre Temperature & Pressure Monitoring Kit

“Stay ahead of the competition with real- time tyre health alerts, ensuring peak performance and safety on the track.”

Dash Display Compatibility

Compatible with the Aim dash range, able to display your tyre reading on-screen
1Mbit CAN Interface

Capable of transmitting data at a rate of 1 million bits per second
Accuracy +/- 20Mbar

Accurate to Within 20 Millibars
Up to 100Hz Sample Rate

The TTPMS System can measure and capture data at a maximum rate of 100 times per second
Manage Multiple Wheel Sets

Track two or more sets of wheels, with automatic assignment of sensors to their respective positions
CW & FCC Compliant

Meets the standards and regulations set forth by the Federal Communications Commission (FCC) for Continuous Wave (CW) radio transmissions

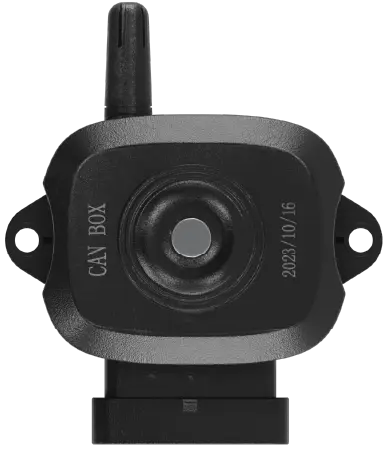

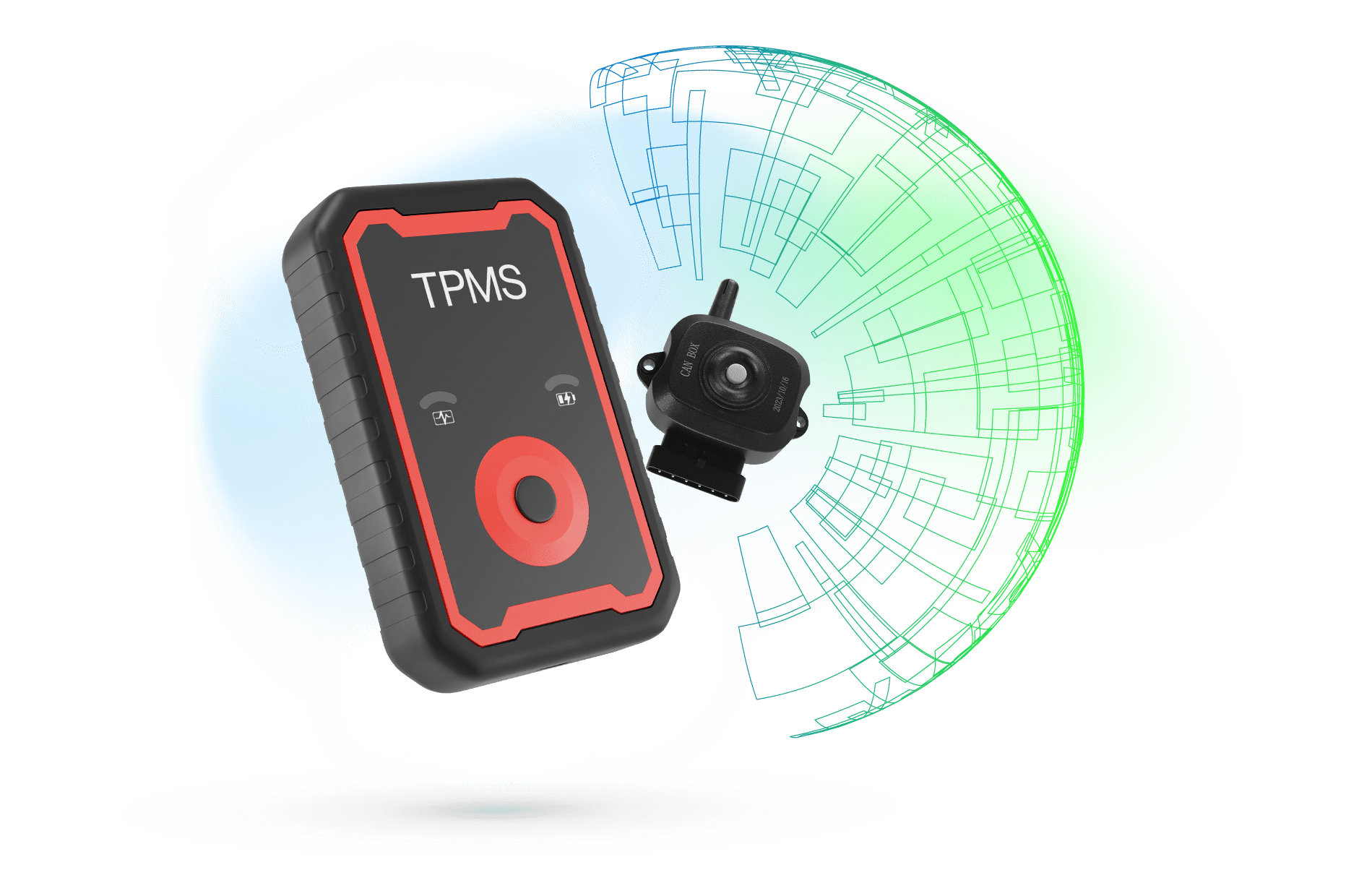

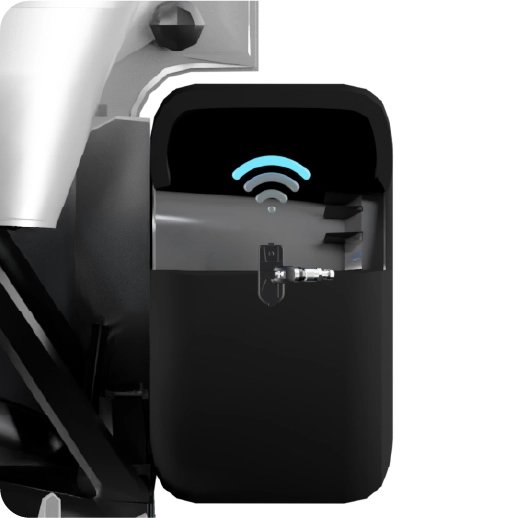

The TTPMS Receiver
Featuring 1 Mbit CAN interface, the Receiver is designed for race car applications garanteeing seamless integration with professional ECUs, Data loggers, and dashboards. Its versatility allows for use with one, two or more sets of wheels, with automatic assignment of sensors to their respective positions.

Race-Day Battery

With a battery lifespan of at least two race seasons, our sensors are durable and reliable. Additional sensors can be programmed with ease, and spare sets are available for purchase.

Powerful Interface

With a 1Mbit CAN interface, the Receiver is built for race cars and ensures easy integration with professional ECUs and data loggers.

Versatility

The Receiver works with one or more set of wheels and automatically assigns sensors to the correct positions.

"Race with Confidence"

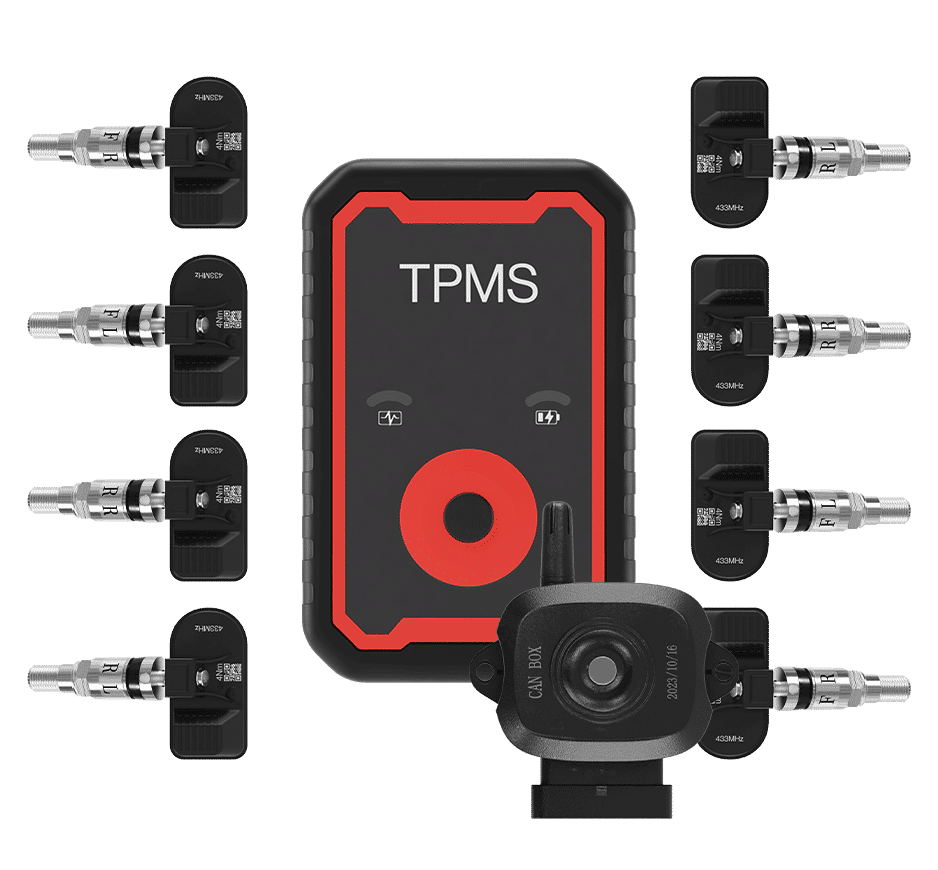

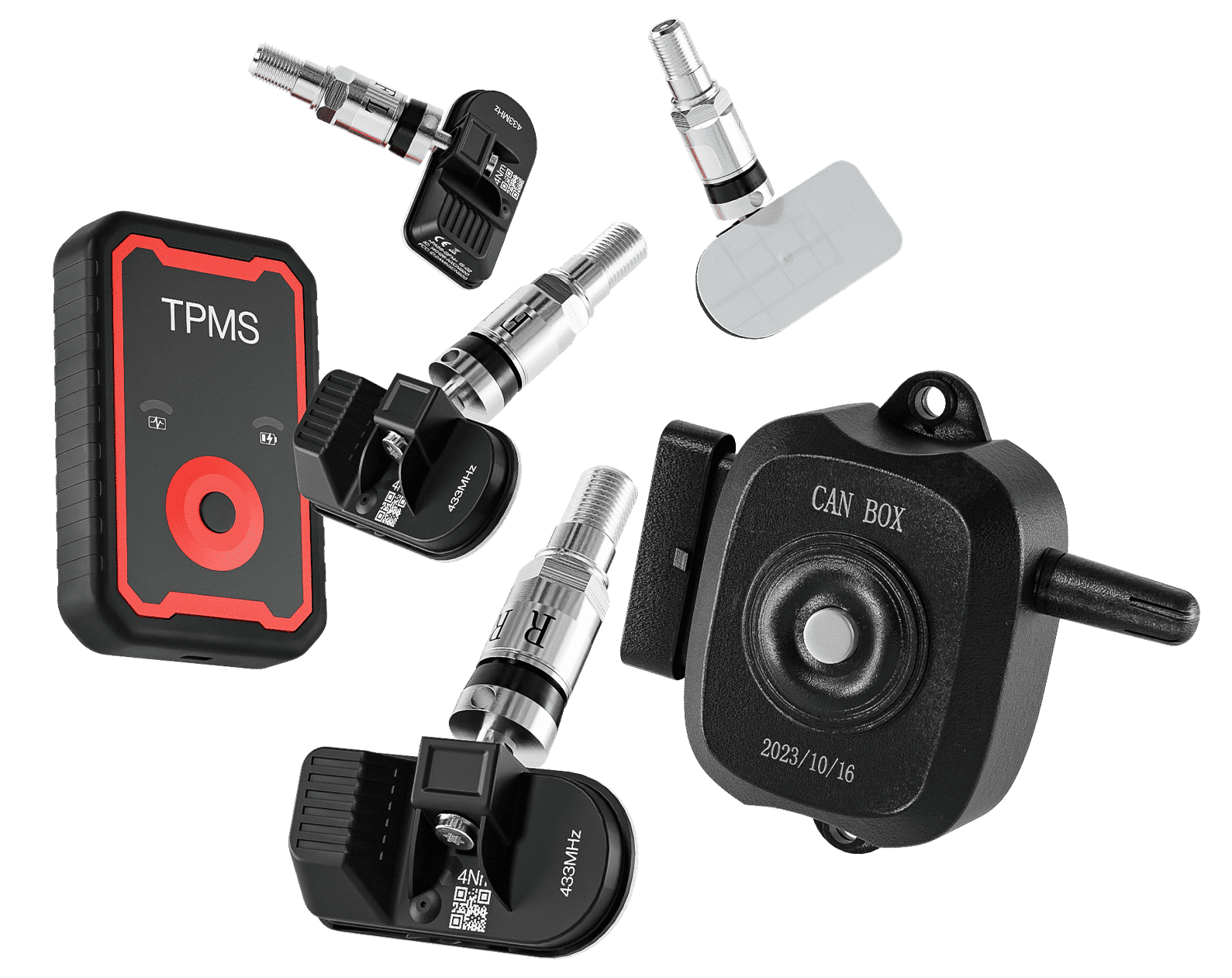

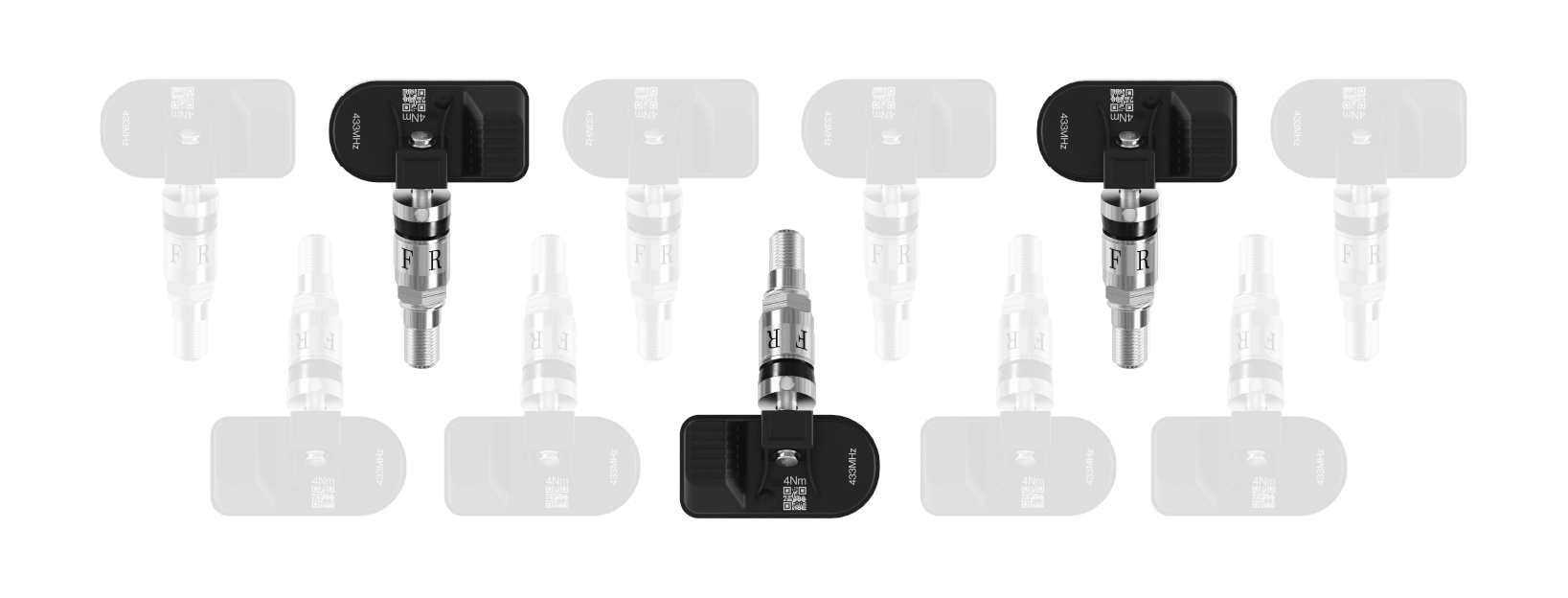

Race-Ready Kits

All sensors come pre-programmed (set 1, set 2, set 3, etc.) and can be easily adjusted with the handheld programming unit. Kits are available in 4x, 8x, 12x, 16x, 20x & 24x or more if needed.

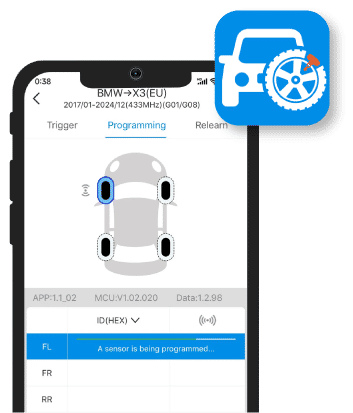

Programming

The Tyre Temperature and Pressure Monitoring System (TTPMS) handset directly reads sensor parameters, including pressure, temperature, and battery voltage, while also allowing programming or modification of sensor details like team code and wheel location.

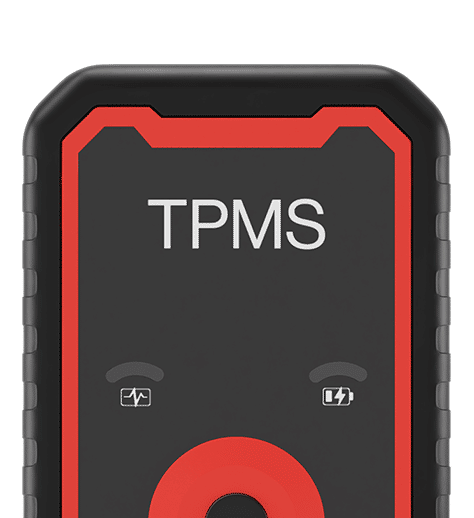

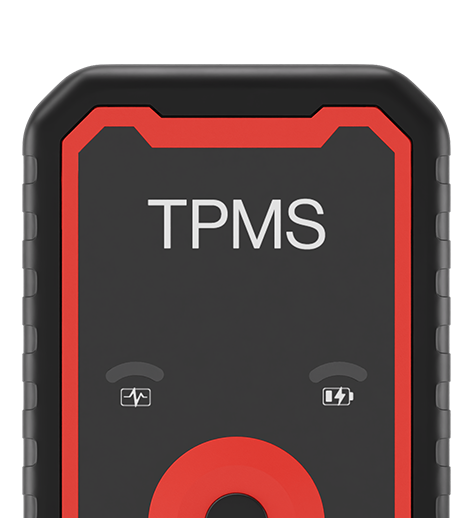

Parameter Handset

The TTPMS handset serves as a direct interface for accessing essential sensor parameters, providing real-time readings for tyre pressure, temperature, and battery voltage.

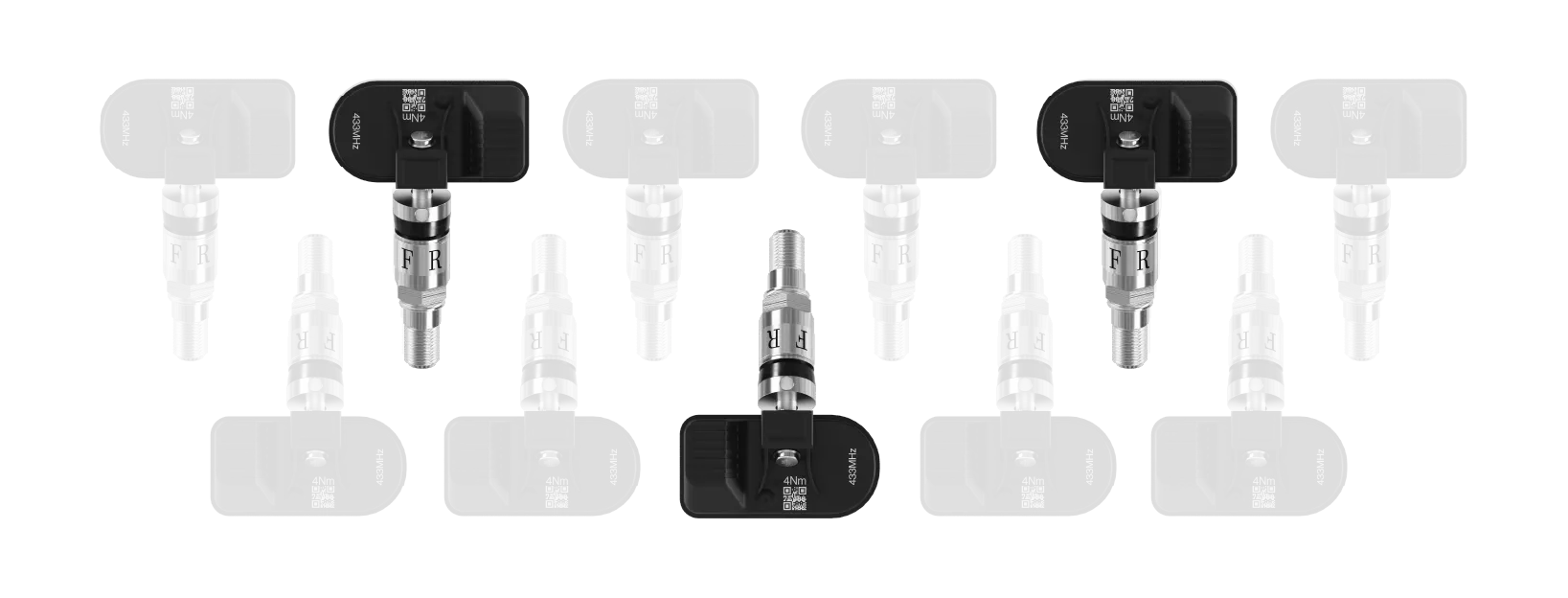

Additional Sensors

This set of four sensors has been specifically designed for use with our Tyre Temperature Pressure Monitoring System. Ideal to fit to spare wheels ready for mid-race tyre changes.
