Technical Information
Tyre Temperature Sensor Kit
Technical Information
Model
Tyre Temperature Sensor Kit
Overview
The Aim Tyre Temperature Sensor Kit has been specifically designed to measure the surface temperature of your tyres.
Key Features
- Provides important chassis tuning information
- Four temperature sensors
- Suitable for MyChron5 S & MyChron 5 S 2T
- Two 712-719 4 pin patch leads 2m
- Connection via CAN
- One status LED
- Two 4 pin 712-719 patch leads 1m
In The Box

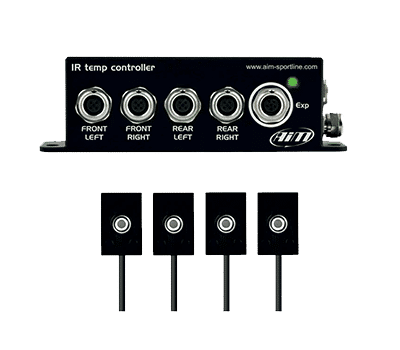

- IR Temperature Controller
- Four Tyre Temperature Sensors
- Two 4 pin 712-719 patch leads 1m length
- Two 4 pin 712-719 patch leads 2m length
Technical
- Connection to MyChron5 S & MyChron S 2T via IR Temperature Controller
- Output signal: - 0-5V
- Field of view: 35°
- Temperature range: -20°/120°C
- IR temperature controller dimensions: 127.6 x 32 x 39mm
- Sensor dimensions: 26.6 x 17.2mm
- Sensor cable length: 250mmz
- IR temperature controller cable: 400mm

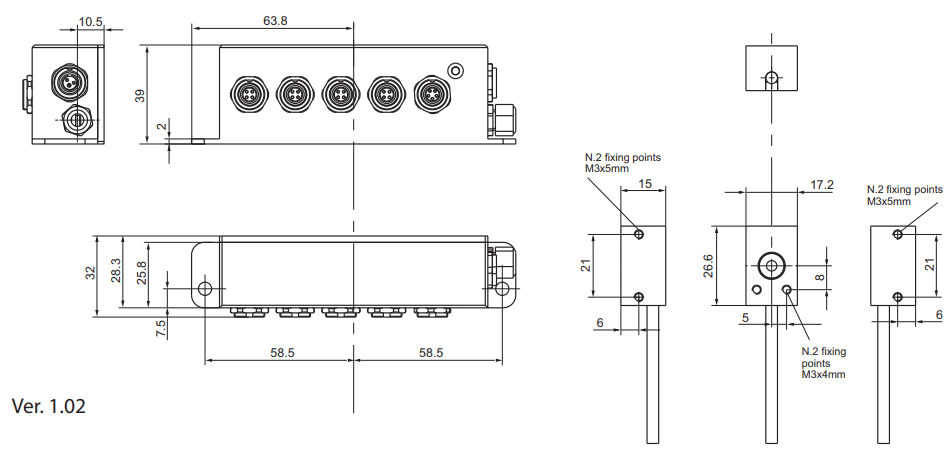

Diagram
