A Guide To Motorsport Data Loggers

What Is A Motorsport Data Logger?

Motorsport data loggers are specialised devices used in the motorsport industry to record and analyse data from a vehicle. This data can help to identify areas of improvement, for both the driver and the vehicle, and can include metrics like speed, RPM, lap times, temperatures, lambda value (air/fuel ratio) and so much more.

Data loggers come as small loggers that can be integrated into existing motorsport setups or as display loggers that have already been integrated into easy-to-read displays.

What Are Motorsport Data Loggers Used For?

Data logging is used in motorsport to monitor system performance, diagnose issues and make informed adjustments for optimal results. Some of the ways data loggers are used in motorsport include:

• For race teams: Motorsport engineers use the data to understand what’s happening with the vehicle engine, suspension and tyres. This data can be used to enhance vehicle and handling safety.
• For race drivers: Display data loggers provide drivers with real time feedback to make adjustments to driving style to improve performance on the track. Drivers can track their lap times, understand their braking and acceleration patterns and evaluate their cornering strategy.

How To Choose A Motorsport Data Logger

Now that we’ve explained what data loggers can be used for, you’re probably wondering what to look out for when comparing which one is best for your needs. Below, we’ve compiled a list of key elements that we recommend that you consider when choosing a motorsport data logger.

1. Data Requirements

One of the most important considerations when comparing motorsport data loggers is to determine what data you want to collect. Basic data loggers capture essential metrics like speed and GPS position, while advanced models offer detailed insights into ECU data, acceleration, throttle position and more.

2. Usability

An intuitive and user-friendly interface is a key component for motorsport displays. After all, even experienced racers don’t want to buy a display logger that is difficult to set up and use. Choose a model that has an intuitive menu, quick setup options and is compatible with user-friendly data analysis software.

3. GPS Accuracy

High GPS accuracy is crucial for tracking exact positions on the track. As standard GPS sampling rates are between 5-10 Hz, look for a data logger with a GPS sampling rate of 10 Hz or higher for precise positioning and lap timing.

4. ECU Compatibility

If you’re looking for a motorsport data logger with advanced data collection, compatibility with the vehicle’s engine control unit (ECU) is essential. Many high-end data loggers can connect to the ECU to record detailed engine and vehicle parameters.

5. Data Storage

The amount of onboard storage determines how much data the device can hold. Some data loggers support external SD cards, while others have built-in storage.

6. Size

Consider the physical size of the display logger. Larger units are better suited to professional racing setups due to the advanced features they can come with, but may be harder to install in compact spaces like go-karts. Smaller, compact devices are more portable and can be easier to mount on various vehicle types.

7. Display Quality

Display loggers with a high-resolution screen, vibrant colours and clear graphics can make it easier to interpret data in intense motorsport environments. At Aim, our display loggers are fully customisable too, so you can tailor the data to suit your preferences.

8. Vehicle Compatibility

It’s important to note that not all display loggers will be suitable for your vehicle type. Whilst many display loggers can be installed on a variety of vehicle dashes, some are specifically designed to be more compatible with certain vehicle types.

9. Durability

Due to the intense motorsport environment, you should choose a data logger that can withstand high temperatures, vibrations and other harsh conditions on the track.

10. Expandability

Consider whether you might want to add sensors or upgrade your system in the future. Some data loggers offer expansion capabilities that allow you to connect additional sensors or modules as your setup expands and changes.

11. Cost

Data loggers range in price, from entry-level models for amateur drivers to high-end devices for professional teams. They are available in small external data loggers to integrate with existing setups, as well as displays with integrated data logging capabilities. Ultimately, you should determine your budget and look for a model that balances features with cost.

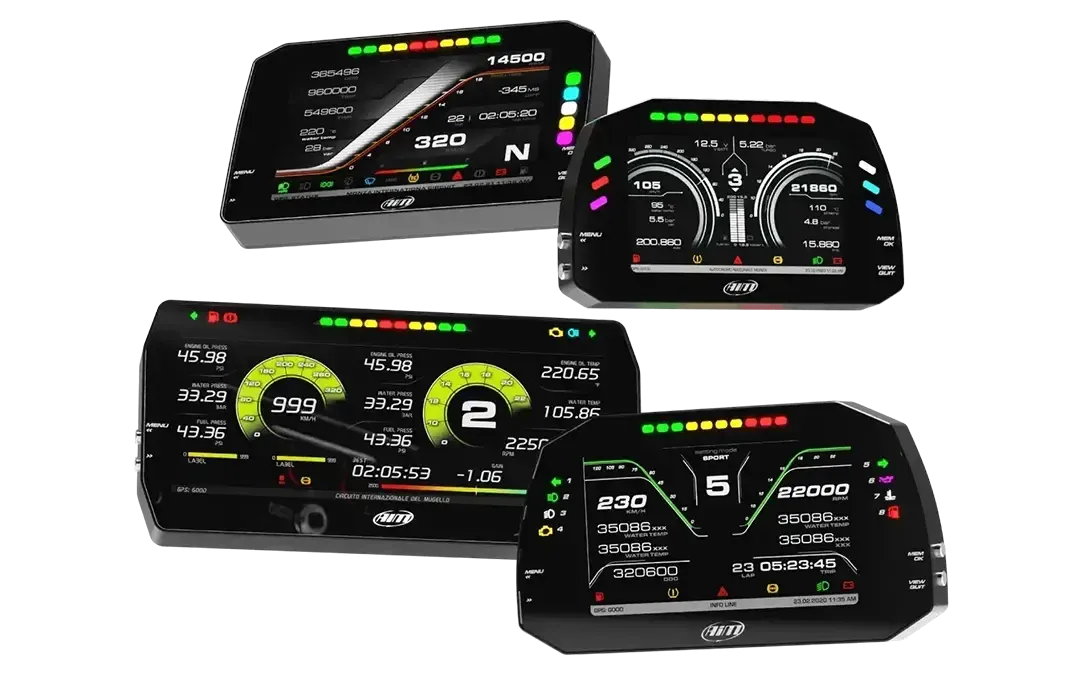

Aim’s Recommended Display Loggers

The table below shows some of our best selling display loggers based on the features that we’ve mentioned previously to help you determine the best model for your motorsport needs.

Data Logging Training & Support

At Aim, we are dedicated to ensuring that our customers have the best experience, from purchasing products from our online store to providing excellent customer support post-purchase. Here are just some of the ways that we can support you:

• Detailed product documentation: We have a vast list of product documentation to help you get a better understanding of our devices.
• In-house technical specialist support: Our dedicated team is here to answer any issues or concerns you might have.
• In-depth setup and support FAQs: Find frequently asked questions about our devices, sensors, software and connectivity.
• Aim Academy training videos: A deeper look into how to set up, install and configure your display logger with easy to follow video instructions.

Where To Buy Aim Motorsport Data Loggers

A motorsport data logger is a powerful tool that can take your racing performance to the next level. By selecting the right model and using its features effectively, drivers and teams alike can gain valuable insights to improve speed, efficiency and consistency on the track.

If you’re interested in Aim data loggers, you can visit the product page on the Aim Technologies website for more information on each model. You can also purchase these products directly from the following sites:

• Aim Shop
• Demon Tweeks
• Grand Prix Racewear
• JB Data Engineering
