Aim Channel Expansion

Aim Channel Expansion

Enhance Your Logger Performance

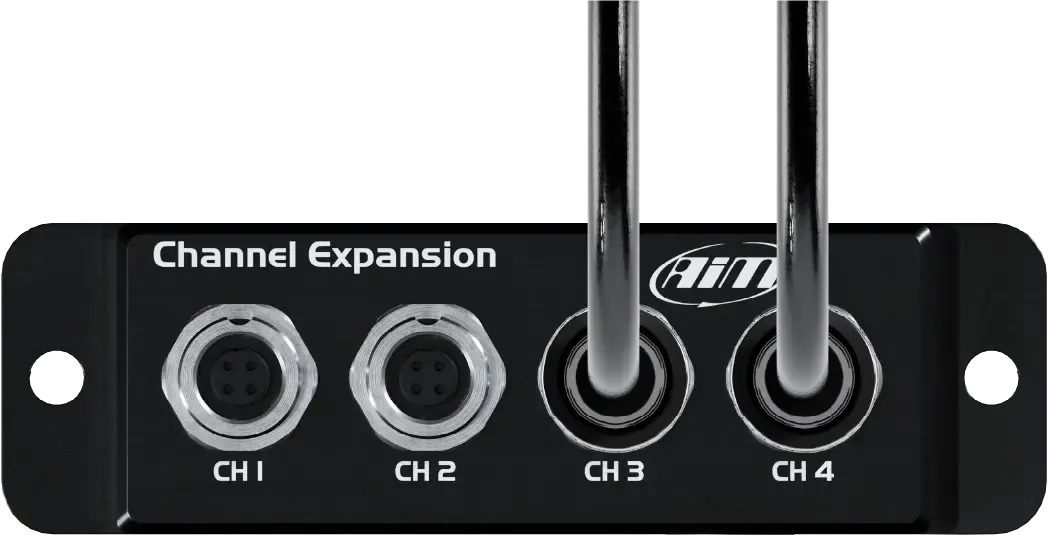

The Aim Channel Expansion is compact CAN device provides virtually endless data acquisition system expansion options. The Channel Expansion hub adds up to four freely configurable analog (or two digital and two analog) channels without occupying or modifying any of the existing system channels.

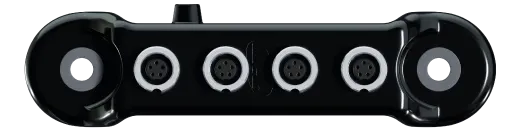

Thanks to the CAN technology, wiring squeezes your harness from four cables to one single connection. Using a Data Hub you can also connect to the master logger as many Channel Expansion as needed.

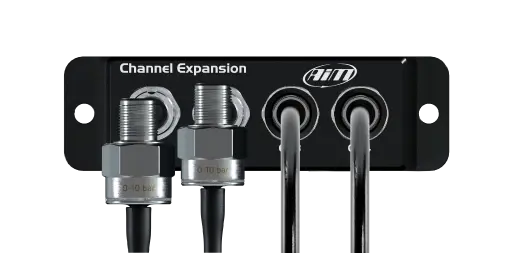

Connection Example

Connection example with MXL2:

Aim Channel Expansion - Connection Example
In The Box

Aim Channel Expansion

Technical Specs

Dimensions: 123x30x23 mm
Weight: 97 g
Sampling Frequency: Programmable up to 100 Hz (depending on sensors)
