Pro Feature

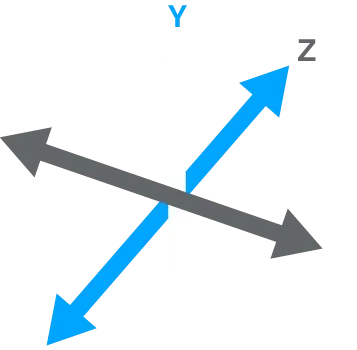

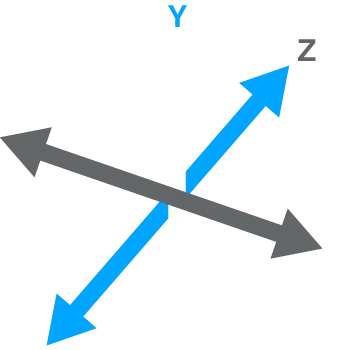

Intelligent 9-Axis IMU
The Intelligent 9-axis IMU enhances data accuracy and provides comprehensive insights into vehicle dynamics, capturing precise information on acceleration, deceleration and lateral movements for advanced performance analysis.

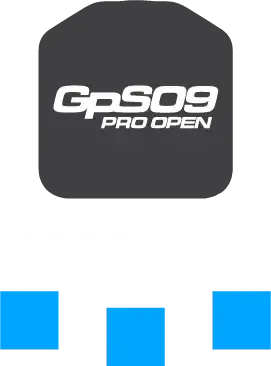

Open CAN Network
The open CAN network on the GPS09 Pro Open Module facilitates seamless integration with various devices, allowing for comprehensive data sharing and analysis across the network.
Frequency
GPS09 quickly locks onto the satellite signal, operating at a higher frequency of 25 Hz. It's ready for use within seconds of powering on.
Uninterrupted Signal
The GPS09 Pro Open Module uses multiple satellite systems, so you can enjoy uninterrupted data and a reliable racing experience.
Precision
With an average tolerance of under 0.5 meters (1.6 feet), GPS09 ensures precise vehicle positioning, even on curves and tight track segments.
Mounting
We have multiple mounting types that can adapt to any scenario
Roof Mounting
The roof mount offers an easier and cleaner installation on the external surface of the vehicle - no more issues with the GPS signal - avoiding problems of application inside certain cockpits
Standing Mounting
The standing mount on the GPS09 Pro Open Module allows secure placement on flat surfaces inside the vehicle, like the dashboard, providing stability and easy visibility for convenient interior mounting
"If you can’t explain it simply, you dont
understand it well enough.”
Albert Einstein
Utilise Race Studio 3 to manage configurations, access a vast track library, and analyse performance with video support.
-
GPS09 Pro Open Module Summary
The Aim GPS09 Pro Open Module is a high-performance GPS and inertial measurement unit (IMU), providing motorsport professionals and enthusiasts with precise vehicle data acquisition. Its key features include:
- 3-axis ±5G accelerometer: The triaxial accelerometer measures acceleration forces along the X, Y and Z axes with a sampling rate of 100 Hz, providing a detailed analysis of braking, acceleration and cornering forces.
- 3-axis gyroscope: The triaxial gyroscope detects rotational movements around the pitch, roll and yaw axes with a sampling rate of 100 Hz, providing precise insights into vehicle stability and handling.
- Multiple satellite systems: Supports both GPS and GLONASS satellite systems for improved signal reliability and faster acquisition times.
- Flexible integration: Supports various CAN configurations, making it compatible with a wide range of aftermarket and OEM systems.
- 25 Hz GPS sampling rate: Captures GPS data 25 times per second, offering highly detailed and precise positioning information.
- Best use case: Motorsport professionals or drivers who want precise and detailed telemetry for performance optimisation.
- Compatibility: Designed to work seamlessly with Aim devices and data loggers.
