Model

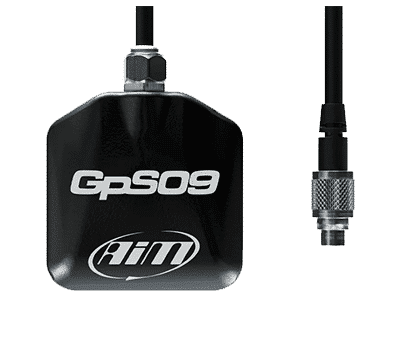

GPS09
GPS09

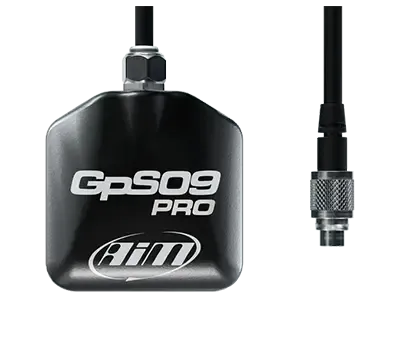

GPS09 Pro
GPS09 Pro

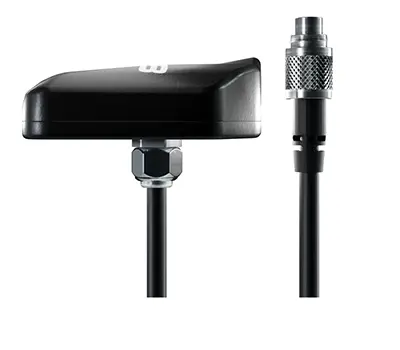

Roof Mount
Roof Mount
Overview
The Aim GPS technology represents a true revolution in data acquisition. With our GPS software, you can immediately sample and split times as well as speed, position and acceleration, all required to improve your driving performance and technique. The GPS Module is connected via a CAN cable which makes it quick and simple to install. GPS09 Pro & OPEN Version Specs are Highlighted in Blue Below
Size & Weight
- Dimensions:
53.2 x 53.8 x 19.7 mm - Weight: 60.5g
- Dimensions:
53.2 x 53.8 x 19.7 mm - Weight: 60.5g
- Dimensions:
53.2 x 53.8 x 37.2 mm - Weight: 100g
Waterproof
- IP67
- IP67
- IP67
In the box
- GPS09 Module
- GPS09 Pro Module
- GPS09 Roof mount Module
Technical
- GPS: 25Hz
- External power: 5÷15 V
- Connection: Aim CAN
- Connection (OPEN): Aim CAN, RS232
- Inertial platform: no
- GPS: 25Hz
- External power: 5÷15 V
- Connection: Aim CAN
- Connection (OPEN): Aim CAN, RS232
- Inertial platform: 100 Hz internal 3 axis ±5G accelerometer + 3 axis gyro + 3 axis magnetometer
- GPS: 25Hz
- External power: 5÷15 V
- Connection: Aim CAN
- Connection (OPEN): Aim CAN, RS232
- Inertial platform (PRO ONLY): 100 Hz internal 3 axis ±5G accelerometer + 3 axis gyro + 3 axis magnetometer
Compatibility
- EVO4S, EVO5, MXL2, MXT, MXT 1.3 Strada MXG, MXG 1.3, MXG 1.3 Strada, MXP, MXP 1.3 Strada, MXS, MXS 1.3, MXS 1.3 Strada, MXK10, MK2E

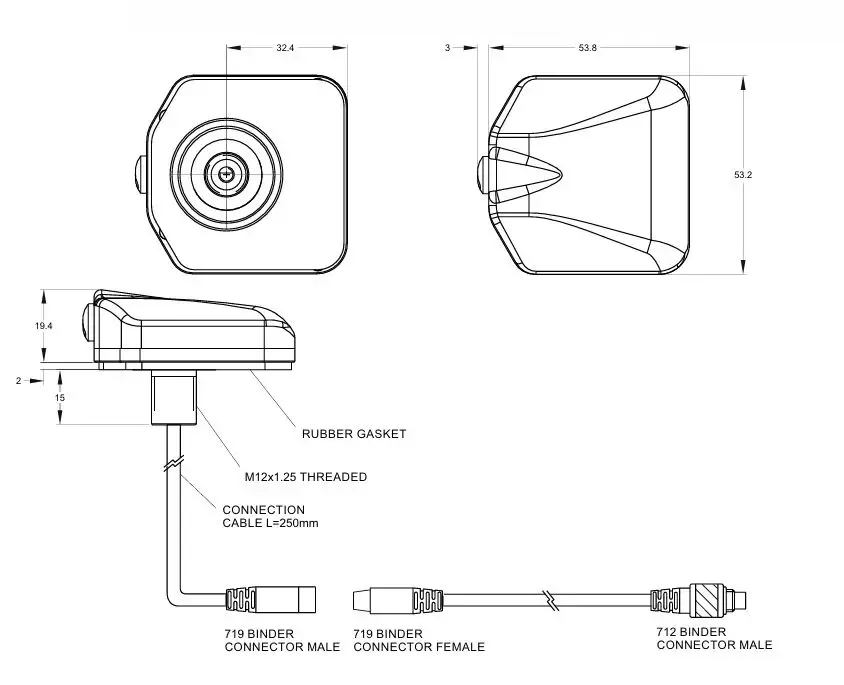

Diagram
×
![]()
